Hydro-pneumatic riveters with suction system | TAR 481220

The thicknessCONTROL MTS 820x and MTS 920x thickness measuring systems from Micro-Epsilon offer a new and efficient solution for measurement tasks in hot rolling mills. They enable high precision...

“ - Quick and easy to use - Suitable for fitting series of rivets ”

Ask for a quote

Presentation

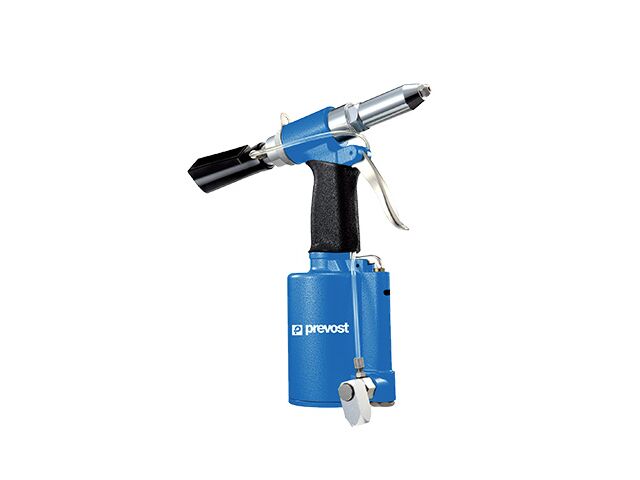

The TAR 481220 hydropneumatic rivet setter with suction system is ideal for setting and fastening aluminum, steel and stainless steel rivets.

It features an advanced suction system and offers a number of advantages for optimum performance. A self-ejecting air valve ensures rapid resetting of the cylinder to its initial position. Rivet attachment is facilitated by a vacuum system that holds the rivet firmly on the rivet holder. Used pins are conveniently collected in a dedicated receptacle. The tool also includes a pivoting air inlet connector, enabling flexible connection and enhanced maneuverability. The handle is covered with a soft material to increase comfort and reduce fatigue during prolonged use.

Technical features

Rivets (mm): 2.4 - 4.8 Max. rivets diam. capacity (mm): 4.8 (Alu/Steel); 4 (Stainless steel) Piston stroke (mm): 14 Tensile strength (kg): 1219 Air consumption without load (l/min): 123 Air inlet (BSPT): R 1/4 Diameter of supply hose (mm - inch): 10 - 3/8" Max. service pressure (bar): 6.2 Noise level (dBA): 60 Vibrations (m/s²): < 2

Download the complete technical features
