Hydraulic press brakes with electronic timing PS1000

CNC bending press

Ask for a quote Receive Documentation Contact the supplier

Hydraulic press brakes with electronic timing the simplest use of the market with all the expertise COLLY

  • control system for bending, or by typing, or in the air, ensuring the synchronism of the cylinders with a positioning accuracy of ± 0.01 mm
  • Regularization proportional flow and pressure for adjusting the speed and strength of zero up to the maximum slide of the press characteristics
  • "EC" declaration of conformity


Workplace

  • Manual clamping hooking nose to nose with punches 16 x 20 mm
  • table plate 90 (32, 50, 80 and 100 t.), 140 (135 and 170 t.) Or 190 mm (200 and 250 vol.) with threads
  • Gooseneck 420 mm
  • Distance table slide 400 mm
  • stroke 200 mm

Control panel
  • Selector operating modes: automatic setting or
  • counter totalizer fold
  • Hour Meter
  • Etc ...

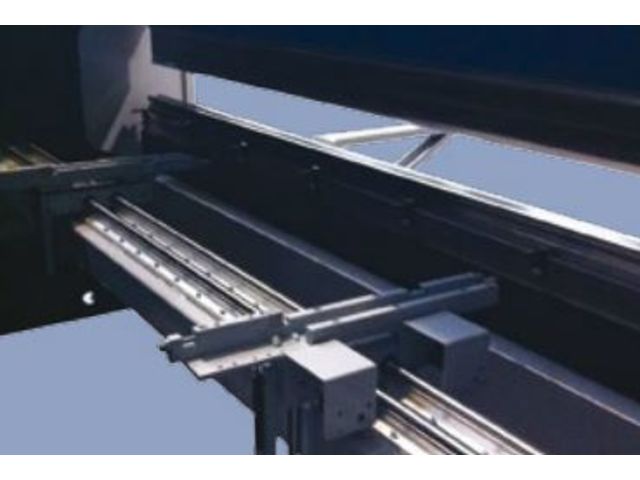

backstop B 1001 (digital X, manual Z)

  • Guiding linear ball bearings by axes
  • Ball screw drive and timing belt
  • measuring and positioning by incremental encoder and digital control
  • design of the heads and stop fingers for working either end stop, either support 40 mm, is carried forward (or support) 500 mm

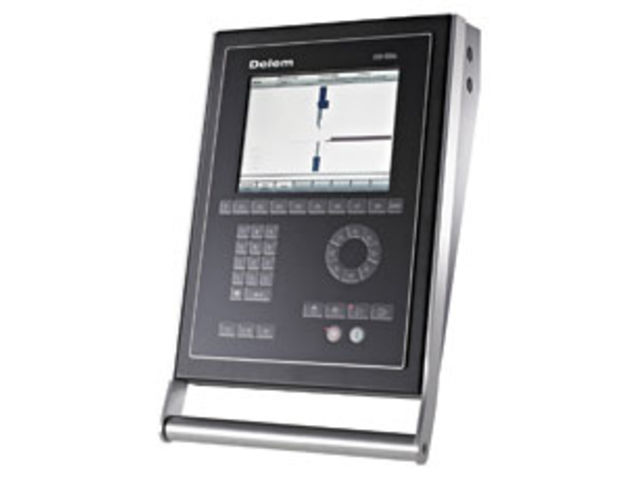

      #s3gt_translate_tooltip_mini { display: none !important; } CNC DELEM DA 52 s
  • Synchronizing cylinders axes Y1 and Y2 with force management
  • bending angle Programming and the slide block
  • skip program steps with positioning backstop
      #s3gt_translate_tooltip_mini { display: none !impor
