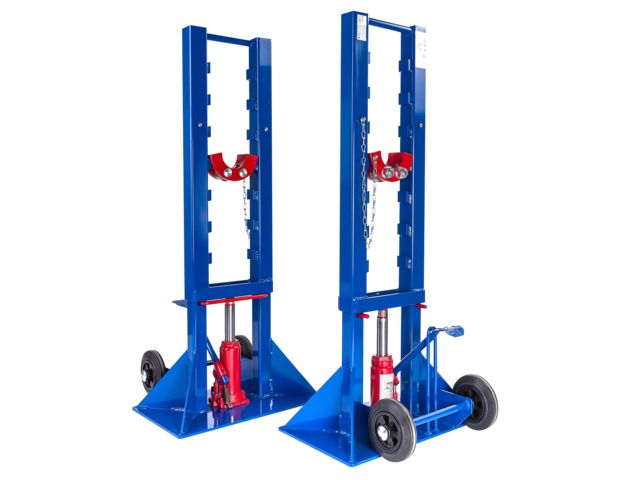

The AXO 10 TONNES is intended for unwinding large reels, on site or in the workshop.
The range inclised 4 different models as follows :
- the maximum diameter of the drum : 2200 mm or 3200 mm
- the maximum width of the drum : 1350 mm or 1900 mm
The bearings that support the axis: with or without ball bearings.
Bearings

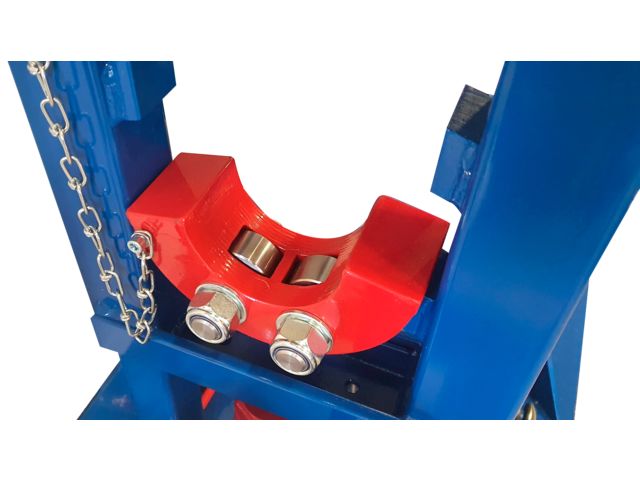

With bearings : ideal for manual pulling at low speed.
The unwinding is very easy.

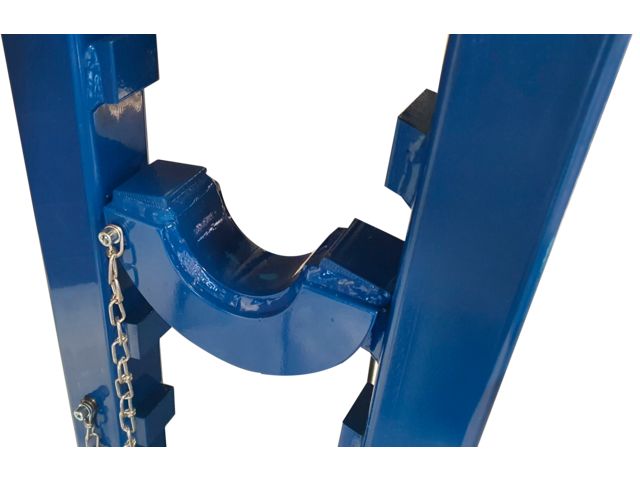

Without bearings : ideal for mororized pulling (winding machine, capstan winch)
The plain bearing exerts a natural brake which reduces the inertia of the reel at the end of the unwinding.
The bearings are removable, but attached by a chain to avoid losing them.
Axis
Diameter 76 mm
Supplied with 2 flat centering devices, which prevent the reel from slipping on one side.
Lifting the drum
By hydraulic cylinder with foot pump.
Lifting is very fast thanks to the removable bearings :
- We introduce the axis into the reel
- The bearings are positioned just below the axis (7 positions for EAX100-22, 13 positions for EAX100-32)
- A few centimeters of lifting are enough to lift the reel off the ground and be able to unwind.
Move
The jacks are easy to move by tilting, using the horizontal bar, on 2 wheels Ø 160mm.
Use in front of a winding machine
Fixing to the ground is compulsory.
Each reference is made up of 2 jacks + 2 bearings + 1 axis + 2 centering devices.
All accessories (bearings, axles, centering devices) are also sold separately.
