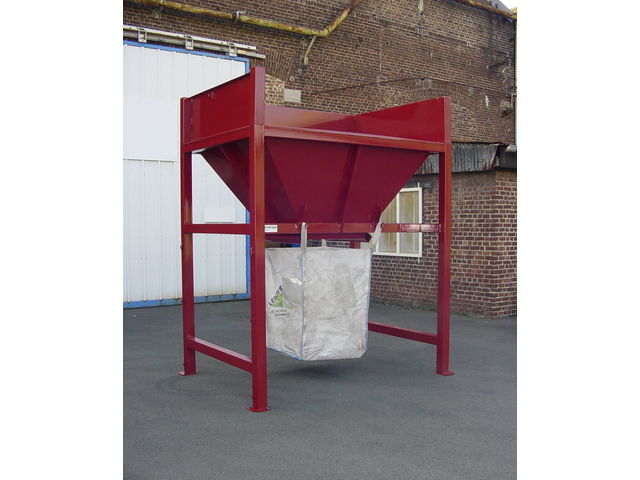

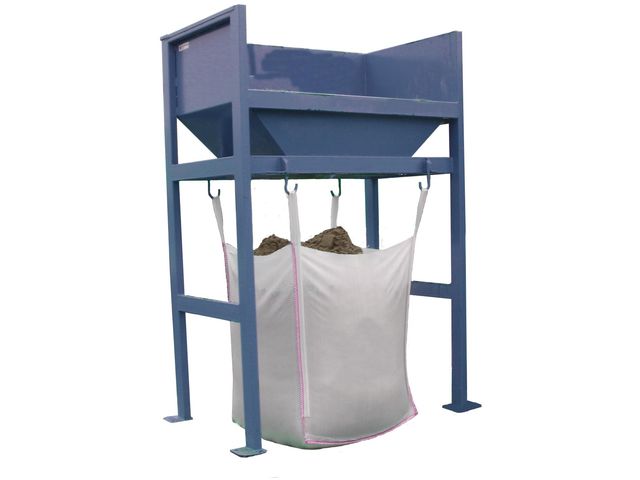

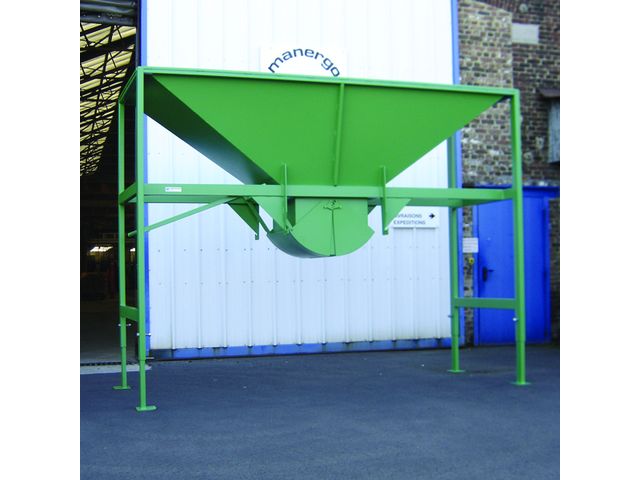

Hopper with Big Bag support Type TSB 1610

Hopper

“ Allows the BIG BAG to be filled safely. Bulk products are inserted from the top of the bag. ”

Ask for a quote

Presentation

French-made hopper allowing the filling of big bags in complete safety.

Customised design and manufacture possible!

Characteristics :

- Standard volume 800 litres
- Maximum load 1500 Kg
- Overall dimensions (L x W x H) 1600 x 1000 x 2400 mm
- Useful dimensions (L x W x H) 1500 x 900 x 900 mm
- Filling height approx. 1950 mm
- Emptying opening 700 x 700 mm at a height of 1500 mm
- Filling of a big bag of 910 x 910 x ht 1050 mm with 230 mm handles
- 4 hooks for holding the big bag during filling by means of its handles.
- 4 plates with floor fixing hole
- Blue, green or grey lacquered finish paint as standard
- French design and manufacture

Options :

- Hot dip galvanizing
- Stamping or stencil marking
- RAL paint finish of your choice

Do not hesitate to contact us for more information about this product!

Technical features

Standard volume 800 litres Maximum load 1500 Kg Overall dimensions (L x W x H) 1600 x 1000 x 2400 mm Filling height approx. 1950 mm Emptying opening 700 x 700 mm at a height of 1500 mm Filling of a big bag of 910 x 910 x ht 1050 mm with 230 mm handles 4 hooks for holding the big bag during filling by means of its handles. 4 plates with floor fixing hole Blue, green or grey lacquered finish paint as standard French design and manufacture

Download the complete technical features
