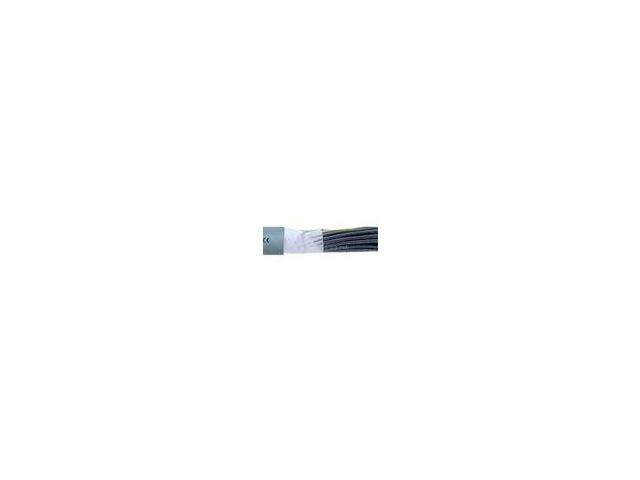

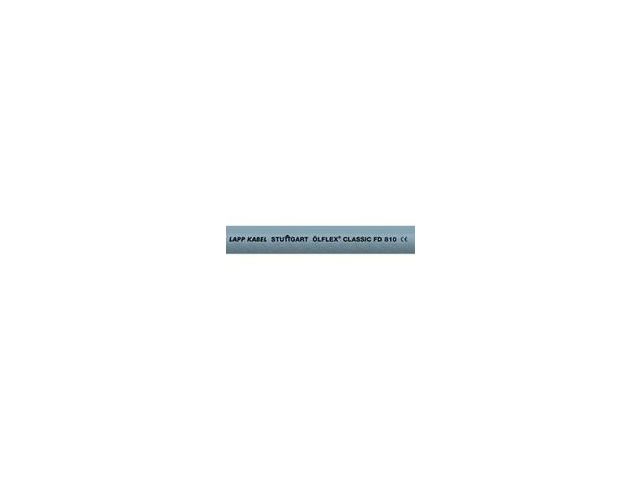

Highly flexible control cable with PVC core insulation | ÖLFLEX CLASSIC FD 810 3G2,5

Cables

Ask for a quote Receive Documentation Contact the supplier

ÖLFLEX® CLASSIC FD 810 - Power and control cable for versatile use in power chains

  • Core Line Performance - Medium to increased travel lengths or acceleration
  • The classic for multi-functional use.
Benefits
  • Well-proven and reliable
  • For various applications
  • Good combination of quality and price
  • Low particle emission at moved chain application
Application range
  • In power chains or moving machine parts
  • Suitable for use in measuring, control and regulating circuits
  • Assembly lines, production lines, in all kinds of machines
  • In damp or wet interiors
  • Only for outdoor use within the indicated operating temperature range, with UV-protection
Product features
  • Flame-retardant according IEC 60332-1-2
  • Low-adhesive surface
Norm references / Approvals
  • Core and outer sheath based on VDE 0245/0285
  • For use in power chains: Please comply with assembly guideline Appendix T3
Product Make-up
  • Extra-fine wire strand made of bare copper wires (class 6)
  • Core insulation: PVC
  • Cores twisted in layers in short lay lengths
  • Non-woven wrapping
  • PVC outer sheath, grey (similar RAL 7001)
