General description :
-

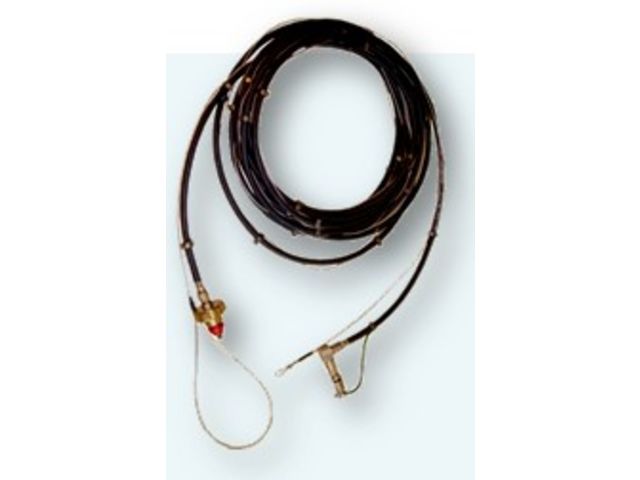

The Nova Swiss® flexible hose HPFH is designed for pure gas (1) applications under high pressure up to 30.000 psi (2000 bar).
Applications :
-
Aerospace, Military industries, Chemicals, R&D dept., etc.
Technical data :
-
Material : stainless steel (high chemical compatibility properties)
-
Flexibility : spiraled tube + spring sheath + 4 types of tube end
-
Choice of 12 connections (see below and table page 3)
-
Nominal diameter : 0.5 mm or 0.9 mm depending on pressure
-
Protection : thermoplastic sheath + captive cap
-
Safety : anti-whip cable + crab
-
PED 97/23/EC category : art. 3.3
Tests and provided documentation :
-
Hydraulic test and gas leakage test (N2)
-
Technical instructions and compliancy certificates (English or French)
Standard range :
-
Pressure : 15.000 and 30.000 psi
-
Temperature : from -32ºC to +60ºC
-
Length : no limit (already produced : 30 m
-
Connections (see table below) :
o HP standard Nova Swiss® connections
o semi-rapid Nova Swiss® connections (700 bar maximum)
o fast connections (400 bar maximum)
Specific requests :
-
Temperature > 60ºC, pressure > 30.000 psi (up to 100.000 psi)
-
Specific connections, or specific material in contact with the fluid
-
Additional tests (fatigue life, fluid, temperature, etc.)
