High-precision LED indicator : IMPAC DA 6000

High-precision LED indicator : IMPAC DA 6000 - LumaSense Technologies GmbH

High-precision LED indicator : IMPAC DA 6000 - Displays

High-precision LED indicator : IMPAC DA 6000 - produit présenté par LumaSense Technologies GmbH

High-precision LED indicator : IMPAC DA 6000

Displays

Ask for a quote

Presentation

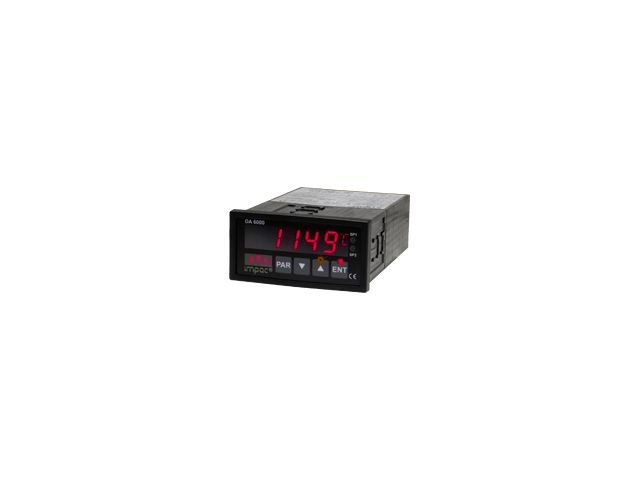

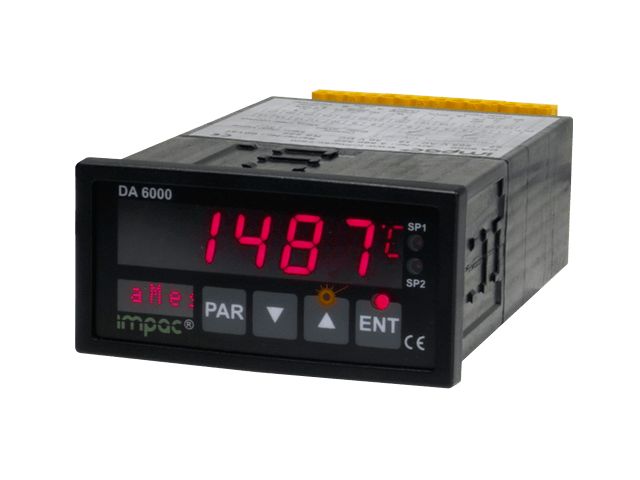

DA 6000 is a high-precision LED indicator for IMPAC non-contact temperature measuring devices with excellent additional properties.

Beyond pure indication of measured temperature you can parametrize a connected IMPAC digital pyrometer via the DA 6000 completely, without any PC.

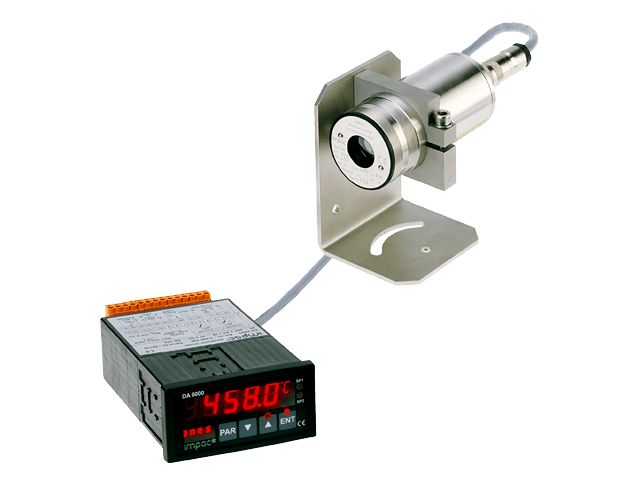

DA 6000 can also digitize the current signal of a connected analog pyrometer and apply some post-processing algorithms like low-pass filtering or max/min storage.

The analog output signal can be “zoomed” to a subrange of the pyrometer’s temperature range. Additionally, there are 2 alarm switches available.

Or you use the digital interface to transfer data to a PC (InfraWin software is included) or to another digital system.
Analog input and output (0/4 ... 20 mA each) can be defined independently from each other. So the conversion from 4...20 mA into 0...20 mA is possible.

The digital interface of this DA 6000 version is a RS 232.
