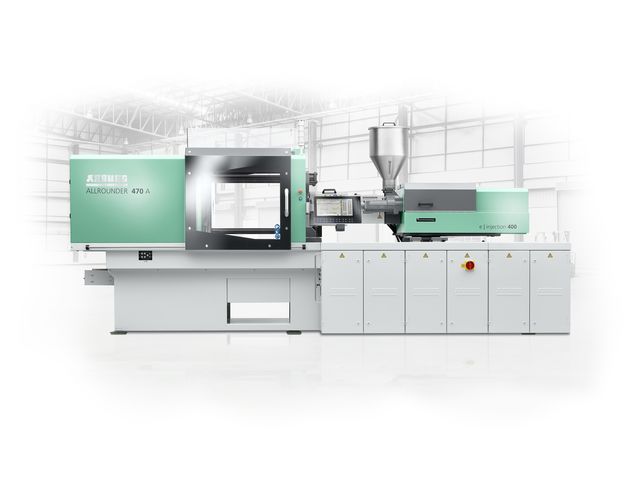

“ Flexibility, speed and high precision electric machine ALLROUNDER A ”

Ask for a quote

Presentation

Need more flexibility in equipment of your electric machines? Looking for high precision solutions to challenging production tasks? Want to maximise your productivity? Our ALLDRIVE machines can be individually adapted using a variety of performance variants. That leaves you the freedom to choose exactly what your area of application requires.

Performance variant L1: The basis for all our electric ALLROUNDERs. Designed for technical parts and particularly energy-saving operation.
• Performance specification similar to standard hydraulic machines
• Servo hydraulics: serial movements of secondary axes (ejector, nozzle movement
and core pull) in relation to one another – simultaneous movements in
relation to servo-electric axes
• Regulated mould locking in two stages possible (not for GOLDEN ELECTRIC)
Performance variant L2: an alternative for the ALLDRIVE in high-speed applications and complex processes.
• Shorter dry cycle times and higher injection speeds
• Small hydraulic accumulator systems: simultaneous movements of secondary
axes in relation to one another as well as in relation to servo-electric axes
• Regulated mould locking in several stages possible
• Cycle-overlapping movements possible
Performance variant L3: an alternative for the ALLDRIVE in the case of thin-walled applications and the highest demands on machine performance.
• All adaptations of performance variant L2
• Even greater injection speeds

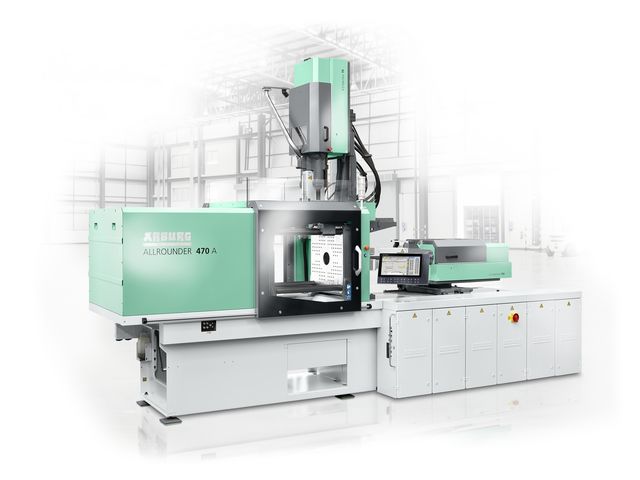

Machine is available in different versions as polycomponents or LSR processing or swiveling.

You can add on machine all handlings range from ARBURG, from sprue picker to 6-axis handling.

Distance between tie-bars are between 270 and 1120 mm, for clamping forces between 350 and 6500 kN. Injection units available are from size 5 to 2100
