High accuracy rotatable pentaprism : PENTALIGN

Alignment

Ask for a quote Receive Documentation Contact the supplier

PENTALIGN provides answers to many questions. Are two surfaces parallel or perpendicular to each other, is a machining axis perpendicular to a reference plane or are two surfaces of a casing parallel?

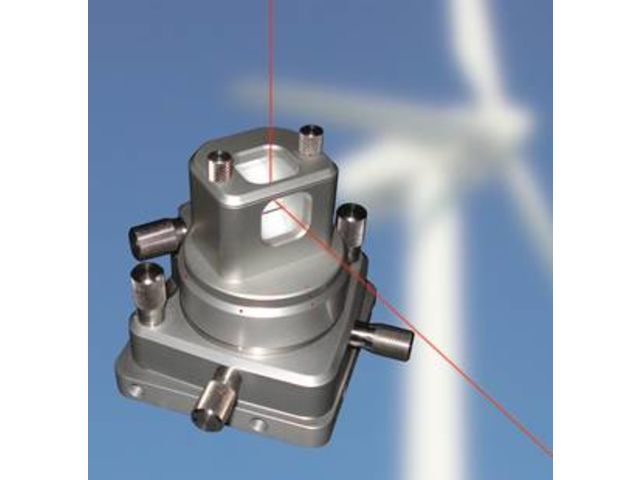

PENTALIGN is a high accuracy rotatable pentaprism. Used in combination with an external laser source it creates a precise perpendicular laser plane to the incident beam. Thanks to the 2-axis adjustment sensor integrated into the pentaprism, the laser plane created after reflection can be measured with an accuracy of .01 mm.

Its compact size and various fixation possibilities such as magnets, tripods, rods and flanges make it the perfect tool to measure perpendicularity between spindle and base plate of drilling machines or ship rudder carrier plans. It can also be used to determine surface parallelism of wind tower segment flanges, gearbox shaft casings, press surfaces and ship propellers.
