COUTIER INDUSTRIE

HIGH ACCESS BLOCKED FOR FIXED LADDERS

HIGH ACCESS BLOCKED FOR FIXED LADDERS - COUTIER INDUSTRIE

HIGH ACCESS BLOCKED FOR FIXED LADDERS - Other safety equipment

HIGH ACCESS BLOCKED FOR FIXED LADDERS - produit présenté par COUTIER INDUSTRIE

HIGH ACCESS BLOCKED FOR FIXED LADDERS

Other safety equipment

Ask for a quote

Presentation

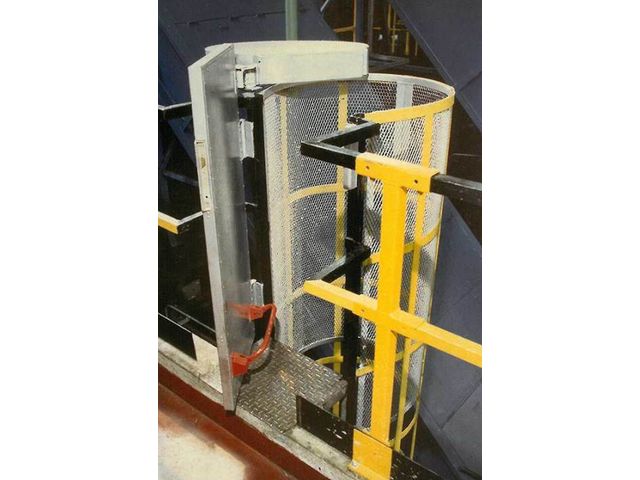

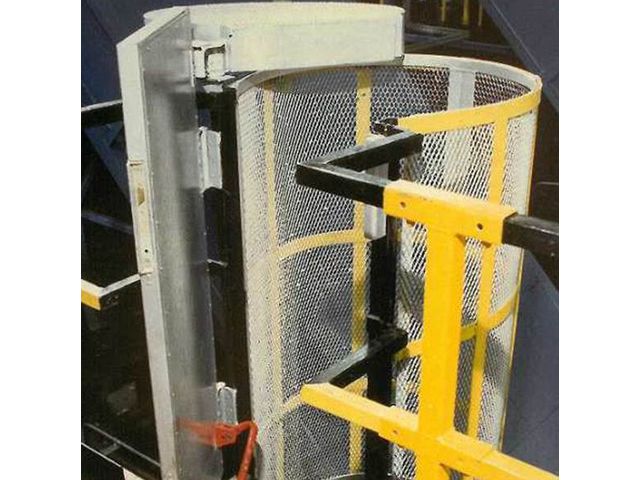

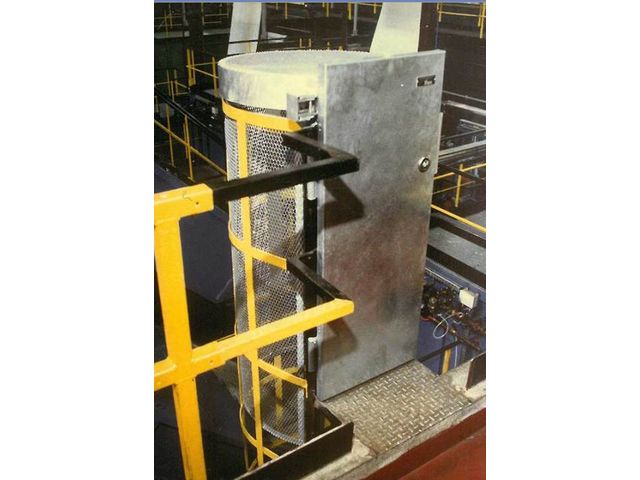

Access blocking panel in galvanized steel jointed on hinges with a upper cover to block the access to the ladders used for going down and accessing dangerous zones (ponds, wells, maintenance pits, …)

Locking system through a key lock built in for the descent.

Automatic closing and locking after passing through.

Unlocking by pulling upwards through the anti-panic bar.

Complies with NF E 85-012 and EN 14122-4 norms.

Access ladder through descent

Unlocks with a key

Open the blocking gate, horizontal shutter above the crinoline which will simultaneously pivot on the side, making room to access the ladder.

Make the descent, pivotal shutter and the gate will close and be locked automatically thanks to the two spring hinges.

Access the escalator

Press on the anti-panic bar by pushing the blocking gate outside of the ladder. The horizontal shutter above the crinoline will pivot on the side and release the exit for the ladder.
