Heavy Duty Ring Guides and Track Systems | HDRT

Slewing bearing

Ask for a quote

Presentation

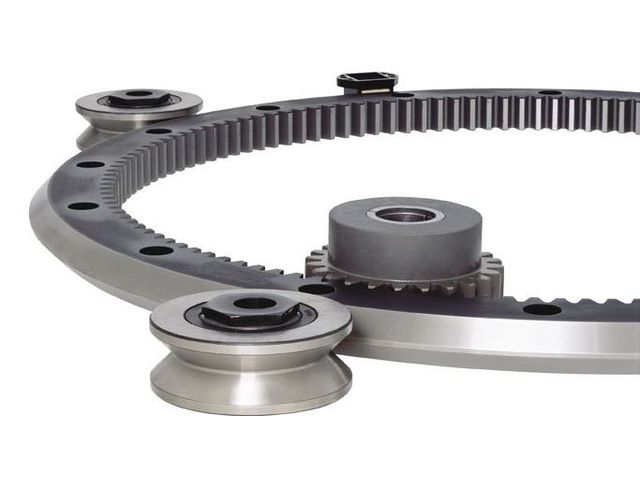

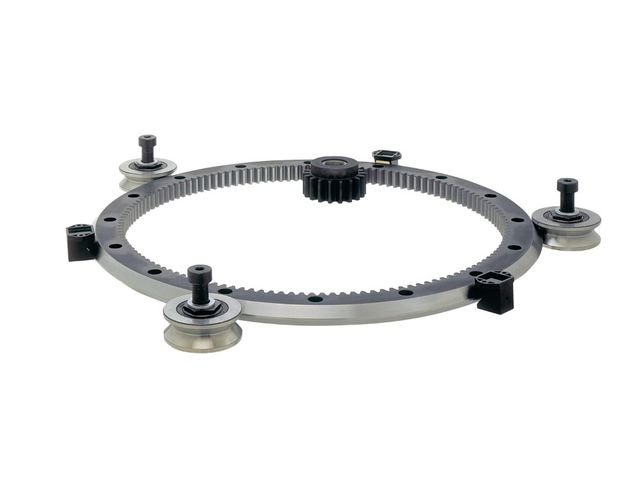

HDRT offers all the inherent benefits of Hepco’s ring and track systems with the capability to carry much higher loads. Utilising proven components, HDRT track systems are used extensively as transfer systems for machine tool and automation applications. In general automation, basic gear driven rings up to 1656mm diameter are a popular solution.

With little to no maintenance required ring systems are considered in many cases as a cost effective alternative to traditional slewing rings.

• 150mm diameter V Groove bearings can be used for extended system life in high load capacity applications.

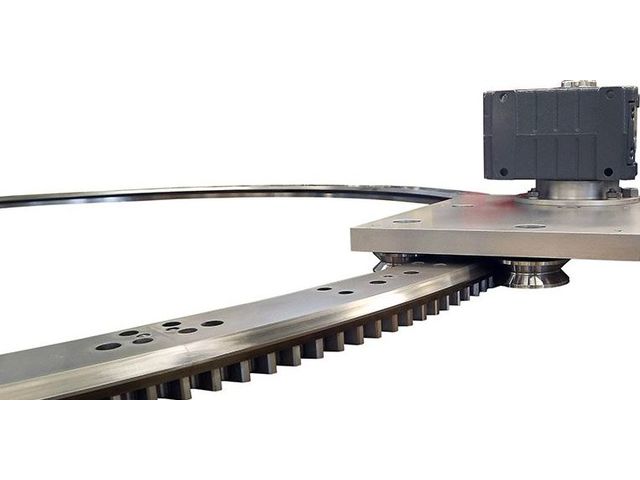

• Track systems use proven heavy-duty double edge slides with built in parallelism, saving on setting time.
• Large carriage platform for easy and secure load location.
• Built in lubrication using bearing lubricators.
• Gears machined directly into ring with matching pinions up to Mod 8 size for a high drive capacity.
• All options available in stainless steel.
