Heavy Duty Multi-stage Vacuum Pumps, CMS HD Series

Vacuum pump

“ Advantages: . Robust: resistant to the harsh environments of production lines . High performance: optimized multi-stage Venturi system that guarantees powerful suction flow rates and reduced compressed air consumption. . Modular: configurable according to needs and easy maintenance. . Communicating: efficient communication system for all use levels, clear and easy to read HMI, NFC technology for mobile use, and IO-Link communications interface for straightforward networking. ”

Ask for a quote

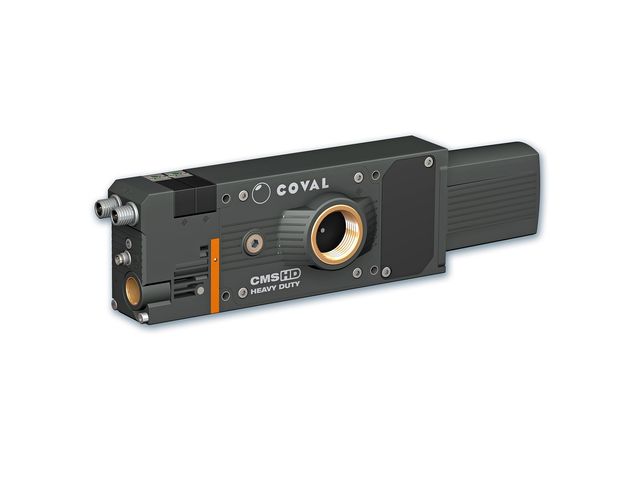

Presentation

COVAL's CMS HD series of multi-stage Heavy Duty vacuum pumps for industry specific Industry-specific applications applications are the result of many years of listening to and getting feedback from manufacturers, integrators, and users in the food, packaging, and robotics industries.

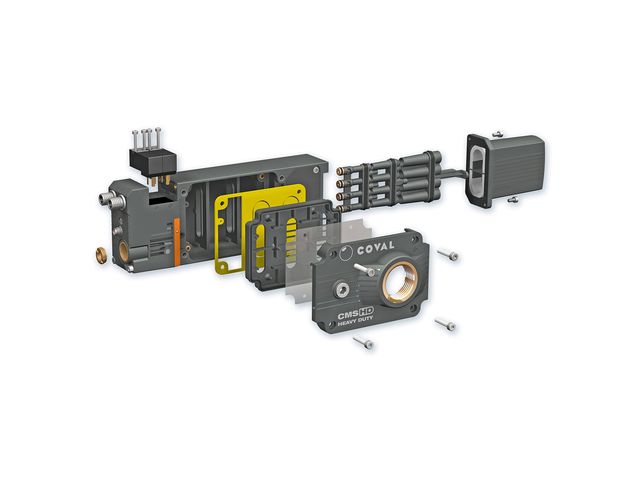

The CMS HD multi-stage vacuum pumps meet their expectations in terms of power, robustness, ease of configuration and use, communication, and modularity, while remaining compact and light for a simplified integration in a smart factory.

Main Specifications (depending on version)
. 80% vacuum
. 3 powerful suction flow rates:
- CMSHD90X50__ => 695 Nl/min
- CMSHD90X100__ => 960 Nl/min
- CMSHD90X150__ => 1300 Nl/min
. With or without vacuum and blow-off control
. Vacuum control: NC, NO
. With or without vacuum switch
. Blow-off controlled or automatic timed
. 1 or 2 M12 connectors
. Digital inputs/outputs mode (SIO) / IO-Link
. 3 exhaust configurations
. Degree of protection: IP65
. PNP / NPN
. Supply pressure monitoring (pressure sensor)
. Supply voltage monitoring
. Vacuum network status analysis and monitoring with a network sizing tool to prevent pressure loss, as well as a clogging detection function

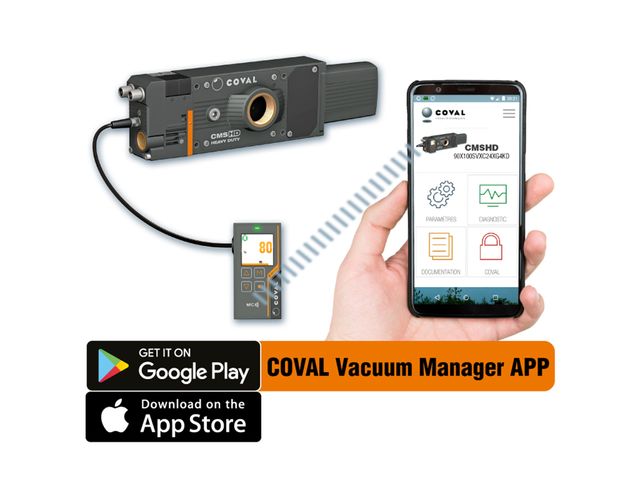

. Remote HMI option features the following:
- High-visibility color display with clear multi-lingual messages and straightforward settings menu
- Easy set up made possible by NFC technology and COVAL Vacuum Manager mobile application

Technical features

80% vacuum 3 powerful suction flow rates: 695 to 1300 Nl/min With or without vacuum and blow-off control Vacuum control: NC, NO Digital inputs/outputs mode (SIO) / IO-Link Degree of protection: IP65 High performance
