Presentation

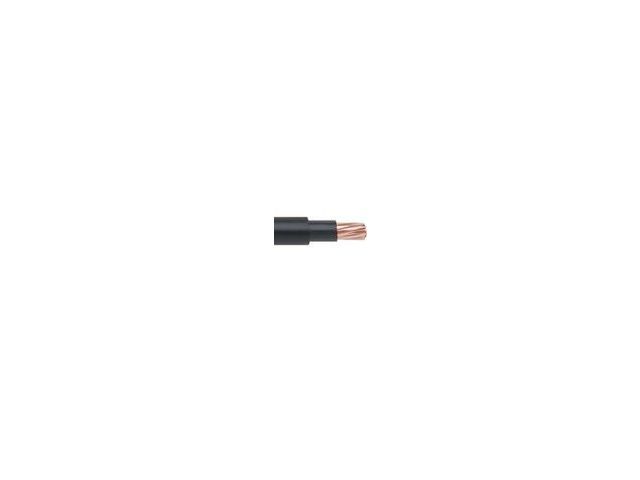

Halogen-free power cable with rated voltage 0,6/1 kV for fixed installation

N2XH - Halogen-free power cable acc. HD 604/VDE 0276-604. Building installation cable with improved fire characteristics for fixed installation

Application range

For installation on or under the plaster
Fixed installation indoor, in air or concrete
For buildings or industrial plants with a high density of people or valuable assets
No direct burial or installation in water
Outdoor laying only when protected from direct sunlight and other external impacts

Product features

Flame-retardant according IEC 60332-1-2
No flame-propagation according to IEC 60332-3-24
Halogen-free according to IEC 60754-1
(amount of halogen acid gas)
Corrosiveness of combustion gases according to IEC 60754-2 (degree of acidity)
Low smoke density according to IEC 61034-2

Norm references / Approvals

Product Make-up

Bare copper wire conductor

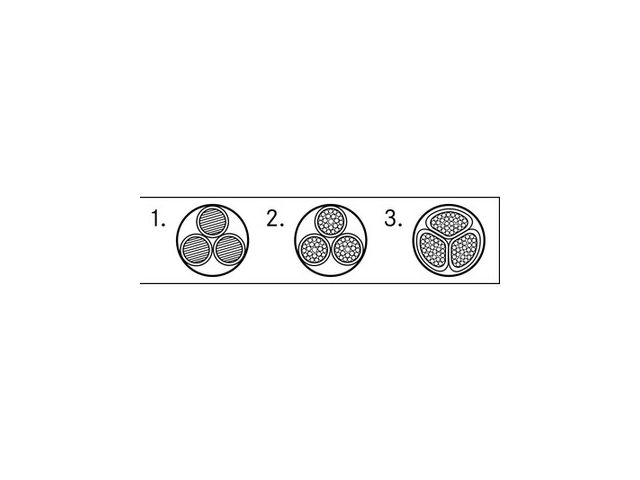

Abbreviations "re", "rm", "se", "sm":
r = round conductor form;
s = sectorial conductor form;
e = single-wire conductor;
m = multi-wire conductor;
Core insulation: Cross-linked Polyethylen (XLPE)
Filling compound over the core assembly
Outer sheath: halogen-free, thermoplastic polyolefin compound
