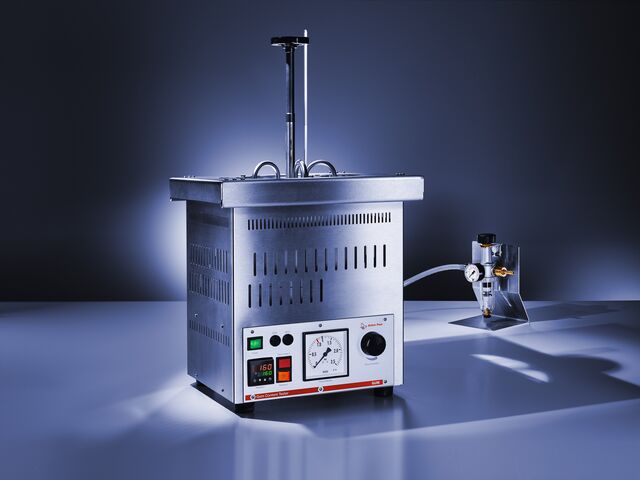

Gum Content Tester: GUM

Chemical analysis

ETx25F encoders are used for reliable angle measurement with a hardened and tempered sleeve bearing made of metal: as singleturn variant (360°) with analogue, PWM, incremental, SER or SPI output or as...

“ Customized User Flexibility Two different versions of Gum content testers are available: - A model for tests with air supply - A model with air and steam supply Be aware that, depending on the model of your choice, the following accessories are required: - Rotary compressor (for air supply) - Steam generator and water demineralization apparatus (the microprocessor-controlled ion exchange assembly supplies soft water for the steam generator's storage tank) ”

Ask for a quote

Presentation

Gum content is the residue of aircraft fuels, motor gasoline and other volatile distillates which cannot be evaporated.

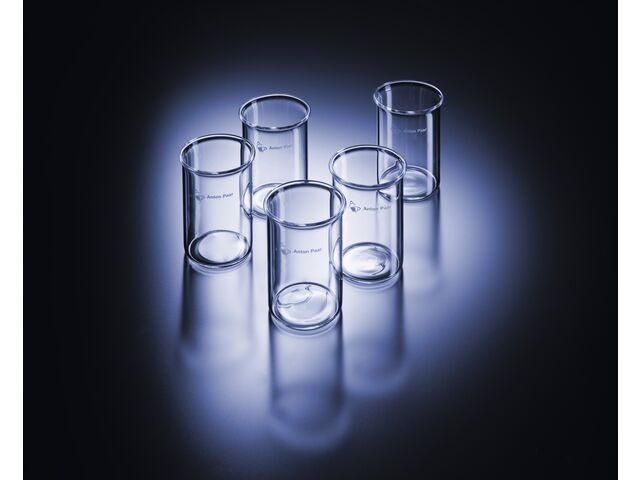

Fuel samples of 50 mL are evaporated under controlled conditions of temperature and the flow of air or steam.

For tests on the gum content of fuels and other volatile distillates

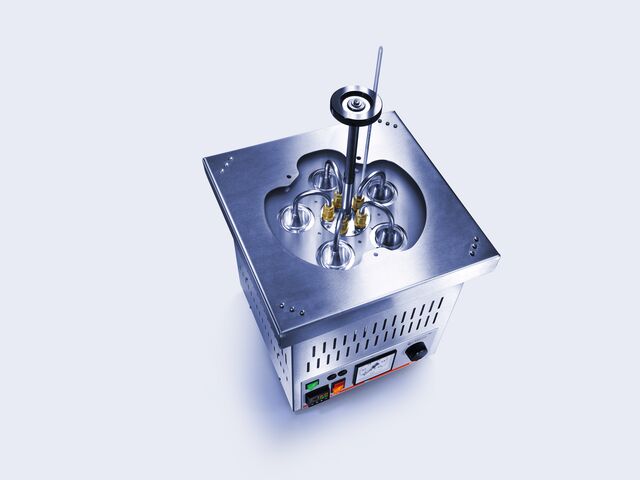

Safety multi-function head for simultaneous positioning
Small size for safe operation in fume hood
Over-temperature protection cut-off

Benefits at a Glance

Safety multi-function head for simultaneous positioning
Draining system
Thermal protection shield

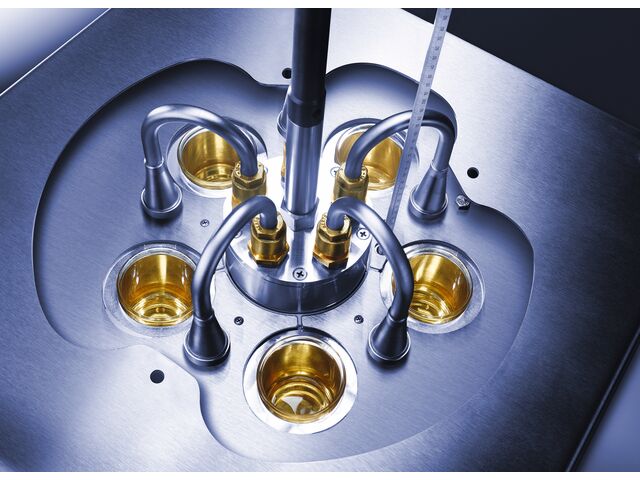

5-test station metal heating block
Air and steam flow calibration sets (optional)

Convenient Operation
The multi-function head was designed for the safe and simultaneous positioning of all 5 pre-adjusted jet tubes. No manual handling and assembling of the hot conical jet tubes is required. After one turn only, all tubes are in their resting, pre-heating or working position. The position of the handle assures that neither steam nor hot air is hazardous to the operator.
Safe withdrawal of condensed water from sample beakers and the compensation of uncontrolled steam eruptions is assured by an efficient draining system.
Over-temperature protection cut-off.

Technical features

Alimentation en air sous pression : 2 bar à 4 bar, nettoyé et sans huile ; min. 300 L/min Test locations: 5 (simultaneous) Pressurized air supply: 2 bar to 4 bar, cleaned and oil free; min. 300 L/min

Download the complete technical features
