Guided radar level transmitter Series LTDR

Guided radar level transmitter Series LTDR - TECFLUID

Guided radar level transmitter Series LTDR - Level indication

Guided radar level transmitter Series LTDR - produit présenté par TECFLUID

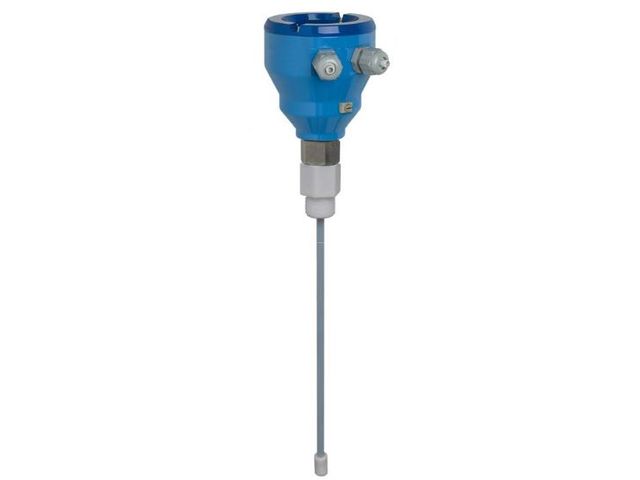

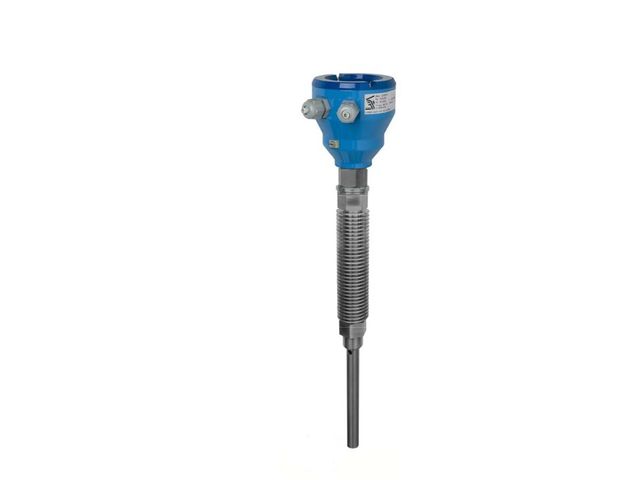

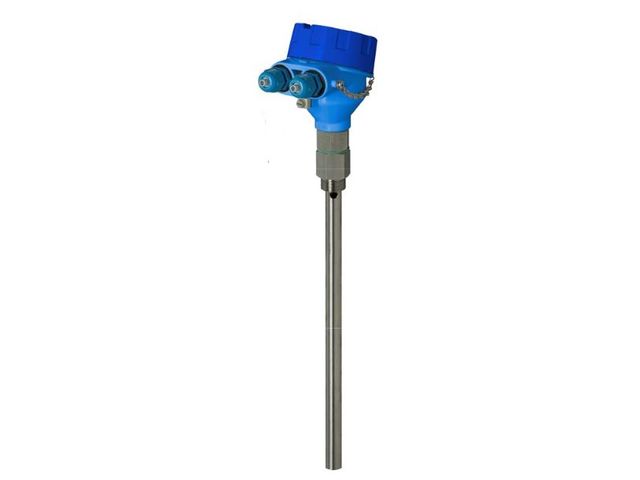

Guided radar level transmitter Series LTDR

Level indication

Ask for a quote

Presentation

TDR Guided radar level transmitter for liquids. Innovative signal analysis and ability to suppress interferences. Continuous level measurement in a direct, accurate and highly reliable way to virtually all liquids and most solids. Exceptional performance with low dielectric constant liquids being especially suitable for applications where there may be changes in product properties. Excellent price / performance ratio. Application areas: Liquids with low reflectivity, such as oils or hydrocarbons, viscous liquids, sticky adhesives, coatings... Applications under high pressure and temperature. Technical specifications:

Length:

Simple rod 100 … 3000 mm
Coaxial probe 100 … 6000 mm
Cable probe 100 … 20000 mm

Accuracy:

+-3 mm

Connetions:

Thread fitting G 3/4”
Others on demand
Top or side mounted by means of by-pass chamber or in combination with LT series level indicator

Materials:

EN 1.4404 (AISI 316L)

4-20 mA analog output

1 x programmable transistor output for level detection

Options:

ATEX version on demand
Wireless I/O solutions
