Gas cooler | MAK10-Peltier

Gas analysis

The Century Series 4 Humidifier will improve working environments that have large amounts of electrical equipment or where it is critical to maintain the moisture balance in the atmosphere. The...

“ Key points : - High performance Peltier cooler with two long life Peltier elements - Accurate output dew point even with large load variations - Corrosion resistant PTFE / PVDF heat exchanger - Very compact design - Digital display for temperature, alarms, logbook, operating hours counter and service interval indication - Scalable modular and configurable depending on the application - 1-2 gas channels - Integrated filters, flow meters, flow alarms, liquid sensors, fuel pumps, pre-separators and acid dosage - Wall mounting, 19 “rack or mobile box ”

Ask for a quote

Presentation

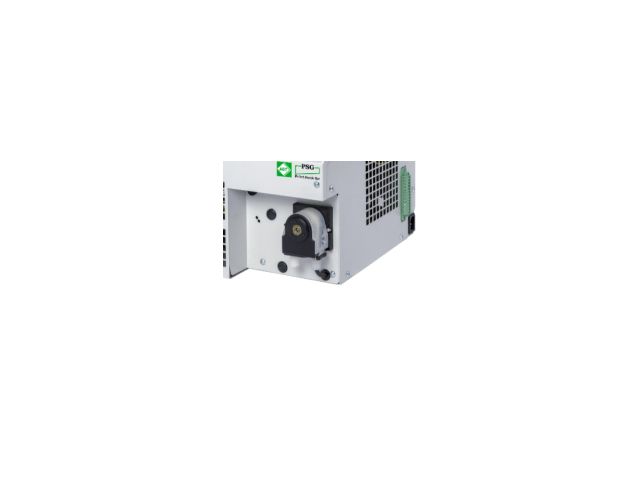

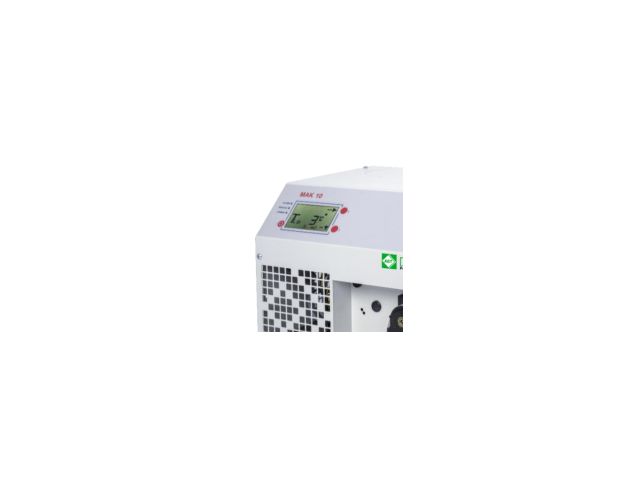

The MAK10-Peltier series compact gas conditioning systems are used for continuous analysis of extractive gases. They are mainly used for the constant and exact lowering of the dew point of the sample gas and therefore for drying the wet sample gas stream. In this way, cross sensitivities of water vapor and volumetric errors are minimized and damage to the sensitive analyzer is avoided. With optional components such as condensate pumps, pre-separators, filters, liquid sensors, flowmeters and sample gas pumps, the MAK10-Peltier series devices can be upgraded to complete compact, fast and simple integrable packaging systems. The flexible modular design guarantees optimum adaptation to each measuring task.

The precise temperature control with pulse width modulation in combination with the innovative corrosion resistant heat exchangers achieves extremely constant low dew points. Load fluctuations and high thermal stresses are also reliably compensated. The corrosion-resistant hydrophobic PTFE coating and the very short retention time in the heat exchanger ensure the lowest possible gas dissolution rate.

An electronic system controls the dew point and the temperature of the cooling air. Potential-free alarm contacts allow remote monitoring of the device. The operating parameters are stored for diagnosis in a log. An operating hour counter monitors maintenance intervals. The available enclosure versions are wall mount enclosures, 19-inch enclosures, and very light mobile versions with carrying handles.
