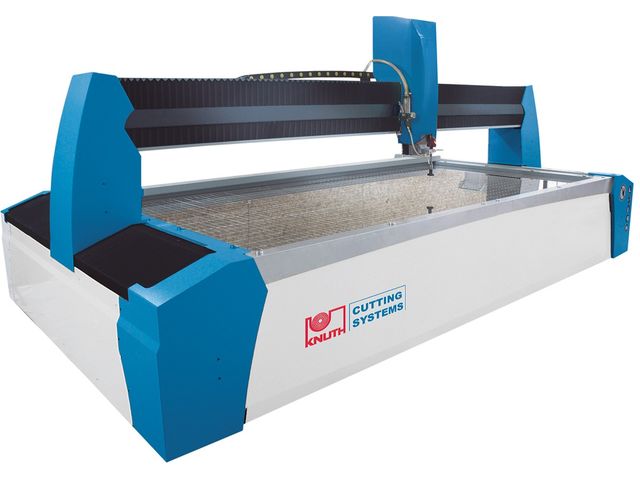

Cutting solution for virtually any type of material
Details
Very rigid dual-drive machien bridge
-
-
Rigid frame construction (sides are made of stress-free annealed and milled monoblocks, which are fastened with pins during machine setup)
-
high-quality linear guides on all axes
-
Ground and hardened helical gears
-
Robust digital servo-drives
-
Totally enclosed moving units to protect against ingress of water and dust
-
Electronically monitored central lubrication system
-
Stand-alone cutting table with high load capacity
-
Exchangeable support grid with galvanized (standard) or stainless steel (option) slats
-
Powerful CNC machine control
-
Intuitive CAD/CAM software
-
Swiveling control panel attached to the machine
High-Pressure System BFT Ecotron 40.37 (included in standard Equipment)
-
The most cost-effective high pressure pump made by a world leading manufacturer
-
Operating pressure can be adjusted from 50 to 380 MPa via an infinitely variable proportional valve
-
Optimized hydraulic system
-
Oil/air cooler or optional oil/water cooler
-
Pressure booster with exceptional lifetime and large pulsation damper
-
Other high-pressure systems are available as options

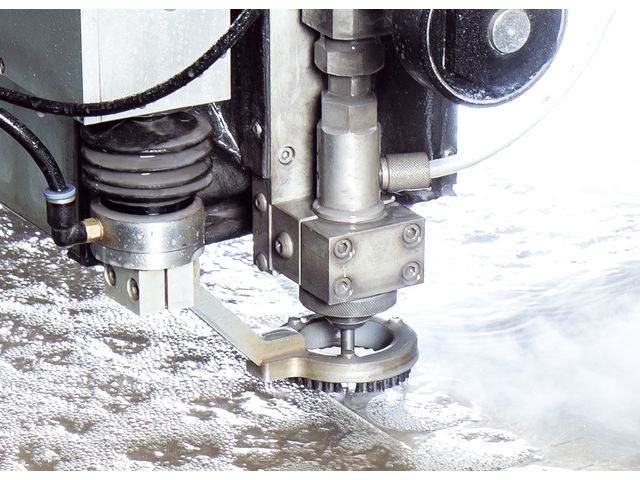

The water-jet is a universal tool:
-
no thermal stress and only minimal mechanical stress
-
No hardening or intrinsic tension on the part
-
no dust, smoke or toxic fumes
-
small kerf width and very clean cut edges
-
virtually burr-free cuts = no rework necessary
-
direct plunge-cut at any position
All you need to run your factory !
