Linear welding machine

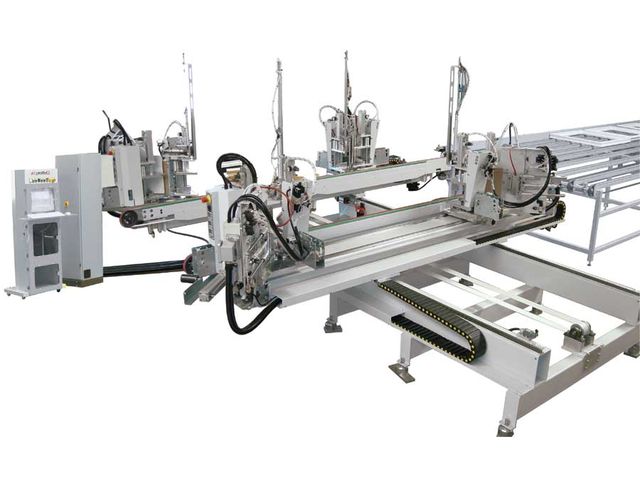

“ CNC welder (3 axes) with four horizontal heads. ”

Ask for a quote

Presentation

QUAD_OS12 welds four corners per work cycle and can be fitted in a welding/cleaning line

The machine is fully fitted out to provide utmost performance features

Features include heated bead restrictors (by means of s/s restrictors), adjustable between 0.2 and 2 mm.); console with PC

Ethernet board for connecting the welder to the company LAN network; profile support arms and protection net.

The maximum welding dimensions (2.9 x 3.5 m) are extremely broad and the minimum dimensions (340 x 420 mm) can be further reduced on request.

The first distinctive feature of this machine consists in having 12 moving tables

This ensures state-of-the-art balancing and corner centring.

With QUAD_OS12 you can weld standard frames, doors (three-side/two corner welding) and combinations (e.g., different frames combinations and sash overlaps), communicating to the cleaner that may be in-line the profiles making up each corner so these can be correctly machined.

OTHER PRODUCTS LINEAR WELDING MACHINE FROM PROFTEQ

4 vertical heads CNC welder SA44V

Ask for a quote

INTERNET USERS ALSO CONSULTED ON THE CATEGORY LINEAR WELDING MACHINE

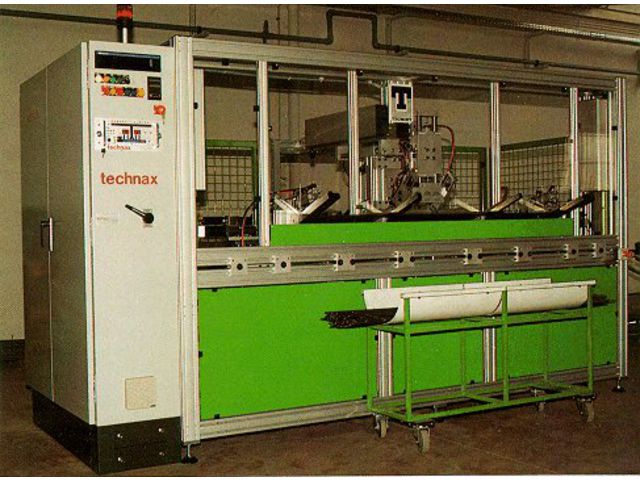

Automatic machine for metallic frames manufacturing

Ask for a quote

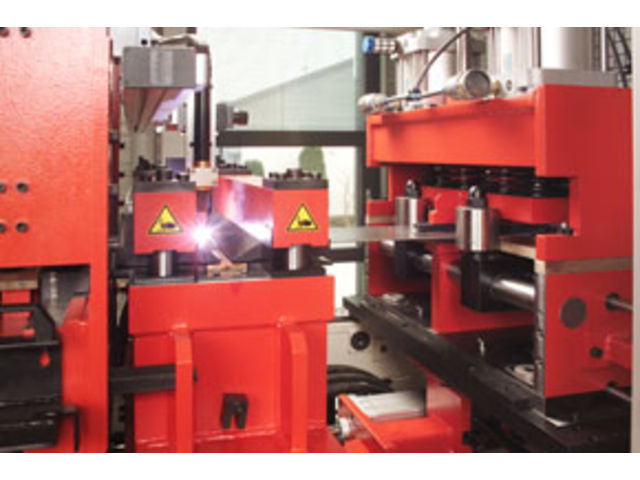

Coil end welder
