Flammable gas safety kit for muffle furnaces KG 100

Gas sensors

“ Safety equipments ”

Ask for a quote

Presentation

· Definition:

Flammable gas safety kit for muffle furnaces. Compact ans safe pack for protective gas piloting for metal muffle furnaces for thermal treatment for use with flammable gas. Ideal for RetroFit and safety compliance of old furnaces without safety systems.

· Construction:

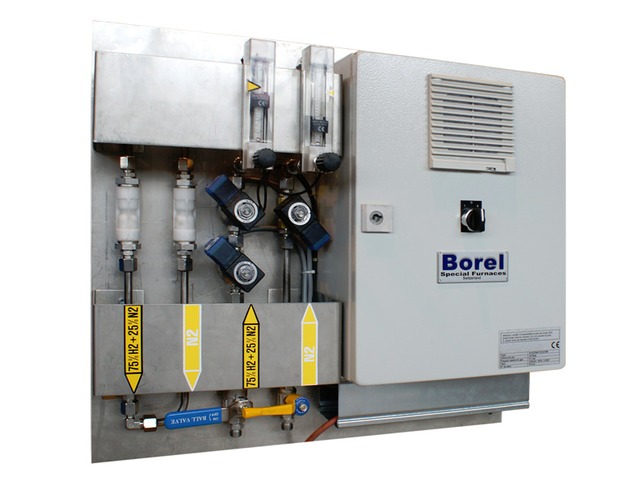

Built in 2 parts. The gas safety unit includes the control, the electrical and pneumatic equipment and the burner which is fitted on the retort or on the muffle by sealed connection with a 10 mm diameter tube.

· Gas types:

Nitrogen, hydrogen, or composed gas: forming gas, cracked ammonia.

· Safety equipments:

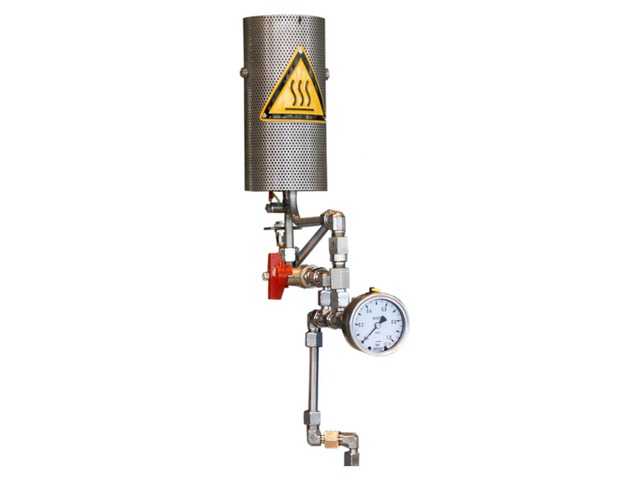

Nitrogen purging, retort pressure displaying manometer, exhaust gas burner with an electric lighter, double safety valves, pressure-relief valve, non-return valves. The set comes with 2 gas supply hoses of 3 meters.

1 programmable logic controller, adjustment and display of gas flow rate,

· Electricity:

voltage single-phase 230 VAC, frequency 50 Hz, power 200 W

· Panel dimensions:

595x560x210 mm

· Documentation:

certification CE, and operating instructions in English.
