Application

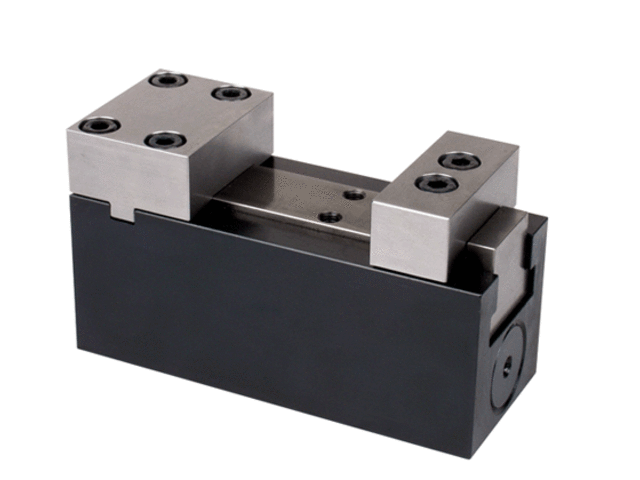

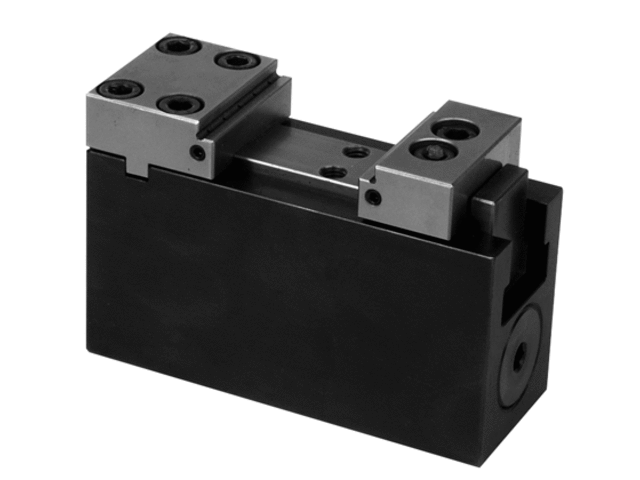

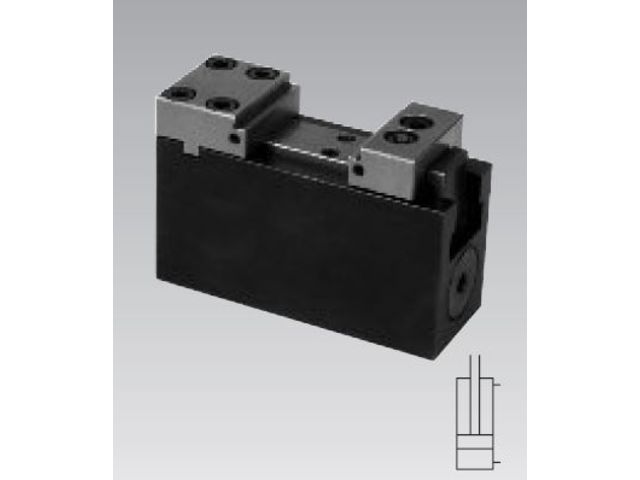

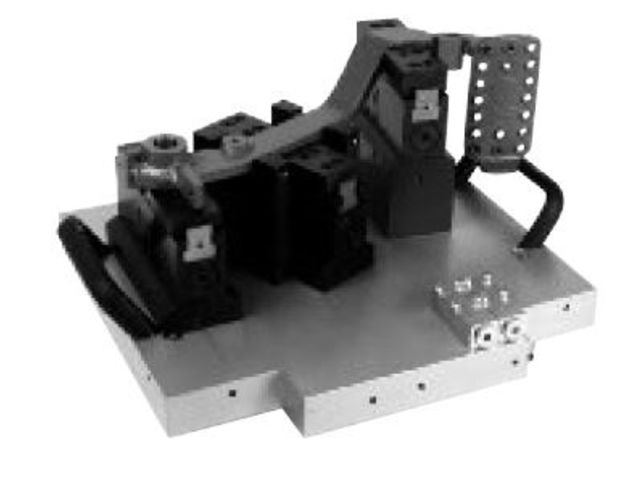

The fixture clamps are used for machining of dimensionally stable workpieces in single or multiple clamping fixtures. Due to their compact design they can be arranged in a very limited space. Fixture clamps are especially suitable for series manufacturing in automated mode. The double-acting cylinder function combined with central lubrication and good swarf protection guarantees a high process safety
Advantages
? Very compact design
? High rigidity and precision
? Strokes 5 and 30 mm
? Double-acting function
? Fixtures without tubes possible
? Exchangeable jaws
? Pneumatic contact or seat control in the fixed jaw possible
? Good swarf protection
? Port for central lubrication
? Mounting position: variable
