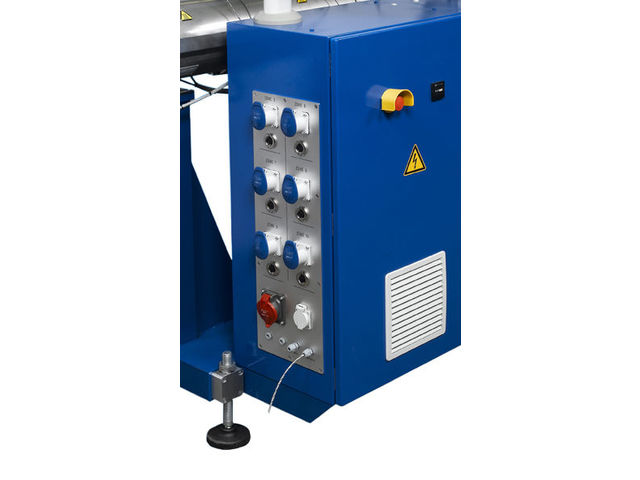

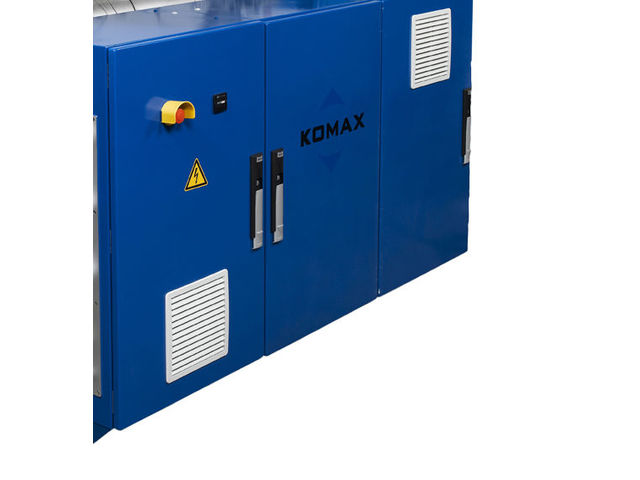

The large range of extruder diameters of the Elipse E allows a response to ail extrusion needs with regards to pipes, profiles, sheets and plates. The Elipse E extruders are designed for the transformation of all types of polymers, including: PVC, PE, PP, PA, ABS, PC, PS, PMMA, PET, TPE, TPU, PU, Fluoropolymers, technical polymers. The 25mm, 35mm and 45mm extruders have a plastification unit in Z-form with the electric control box underneath (see photo on the reverse), whereas the 60mm, 75mm and 90mm machines have all-form plastification unit and housed control box (see above).
REDUCED ELECTRICAL CONSUMPTION
AC Motor across the range, high output reducer direct transmission. Isolated heating collars to reduce loss by thermic dissipation.
OVERSIZED AXIAL THRUST BEHRING
Thrust bearing with a life expectancy of 20 years, based on being under a constant pressure of 400 bar.
HEATING AND COOLING
The ceramic collars assure a rapid and homogenous temperature rise, the grooves on the exterior of the barre) guarantee extremely efficient cooling.
LOW MAINTENANCE
All range equipped with direct drive AC motor without belt or Chain. Electrical wiring with guide marks CAB 3.
INSTALLATION AND RELOGATION
Height-adjustable feet facilitate installation, level placement and relocation.
PLASTIFICATION UNIT
Barrel in specific or bimetallic nitriding steel. We propose four screws as standard: universal, for rigid PVC, for soft material, for polyolefin. Specific screws on demand: barrier screw, Maddock screw, with mixer,
STRENGTH AND RELIABILITY
Best choice components, oven-baked PU paint, mono- bloc chassis.

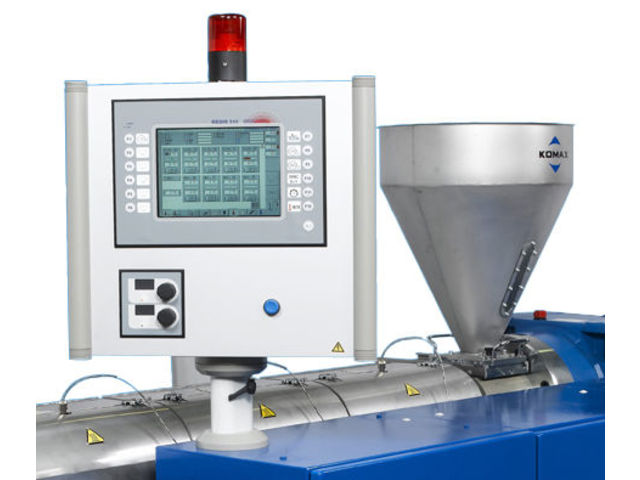

Supplementary tooling heat zoneMet pressure with double securityMelt temperature with security0'' or 12'' touch screen controlSliding feed hopper with secondary feed hopperLevel sensor with alarmLight grooved barre) in 3DLine speed synchronisationIT-controlled heating collarsMounted on adjustable wheels with rail
