“ The multipin connectors with ‘e’ protection are the latest addition to Marechal Electric’s expanding range of ATEX power and ATEX single core connectors. The 25 or 37 contacts each carry 5 or 10 A at 220 V a.c. The watertight rating is achieved automatically when the plug is inserted into the socket whilst the corrosion-resistant metal casings provide high mechanical resistance to IK09. ”

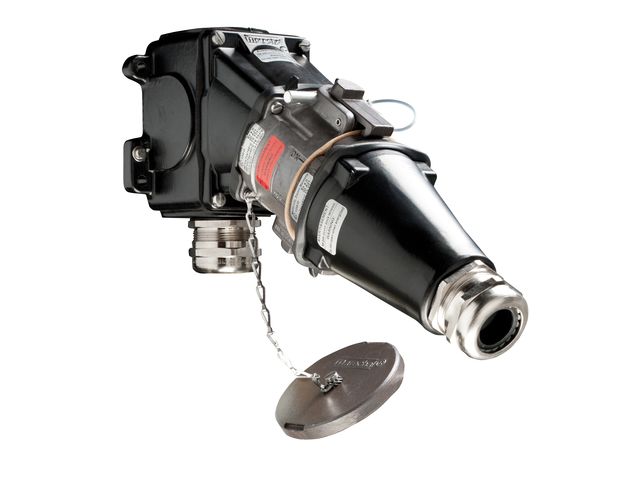

Watertight multi-contact connectors IP65/IP66 with increased safety «e» for hazardous areas (ATEX).
With an e protection mode
In compliance with the ATEX Directive 94/9/EC. It is used in zones 1 and 2 (gas) and zone 21 and 22 (dust).
Up to 10 A, 220 V a.c.
PXN12C : 11 P+T. Temperature range : -40 °C to +55 °C
DXN25C : 24 P+T. Temperature range : -40 °C to +60 °C
DXN37C : 36 P+T. Temperature range : -40 °C to +60 °C
II2 G D Ex e ia or ib IIC
