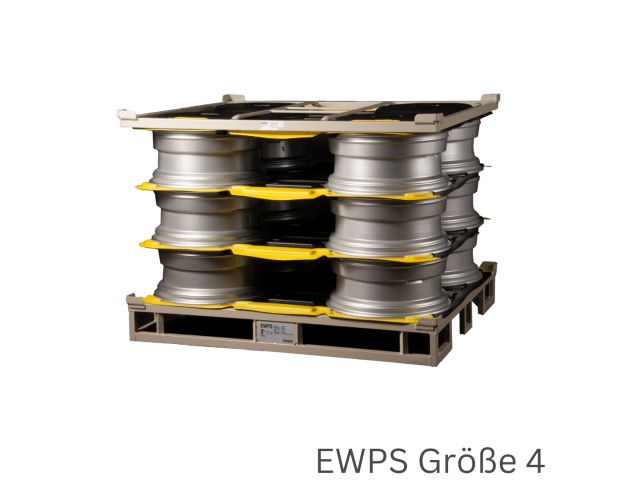

EWPS wheel pallet size 4

Mobile racking

Ask for a quote

Presentation

EWPS (= European Wheel Pallet System) wheel pallets for transport and storage of rims and wheels. A complete EWPS set consists of the components base pallet, top frame as well as plastic intermediate tiers and is used as a load carrier for rims and wheels made of steel or light alloy. In our certified manufacturing facilities in Germany and the Czech Republic, we produce the sizes 2, 3 and 4 of the EWPS wheel pallet with the highest precision using fully and partially automated manufacturing processes.

Dimensions:
Size 2: 1.358 x 1.153 mm, height base pallet: 195 mm, height top frame: 70 mm, usable for inch size: 15“, 16“, 17“, 18“, 19“, 20“

- Europe-wide standardized system for car, SUV, truck wheels and rims
- Exchange pool for all wheel manufacturers, tire wheel assembly partner and OEMs
- The right EWPS for every wheel and rim size
- Truck optimized dimensions
- Extremely stable and safe
- Suitable for automation and conveying

Technical features

Dimensions: 1,908 x 1,208 mm Height base pallet: 195 mm Height top frame: 110 mm Maximum load (per loading unit): 1,000 kg Applied load: 3,000 kg Max. stacking height: 5 m Finish: powder coated Wheel/rim size: 22“, 23“, 24“ Necessary accessories: Appropriate intermediate layer for required wheel/rim size

Download the complete technical features
