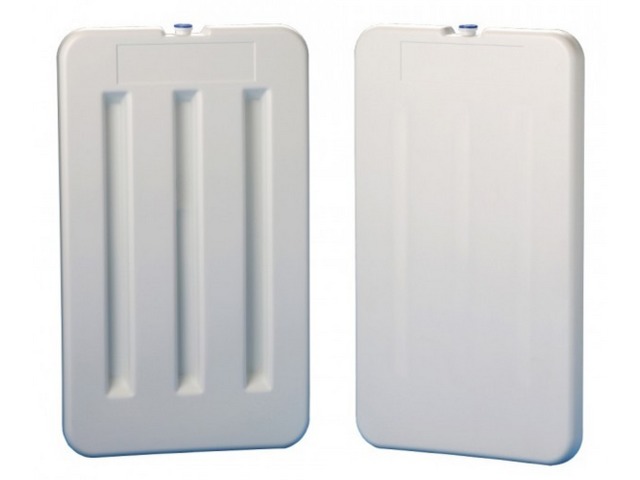

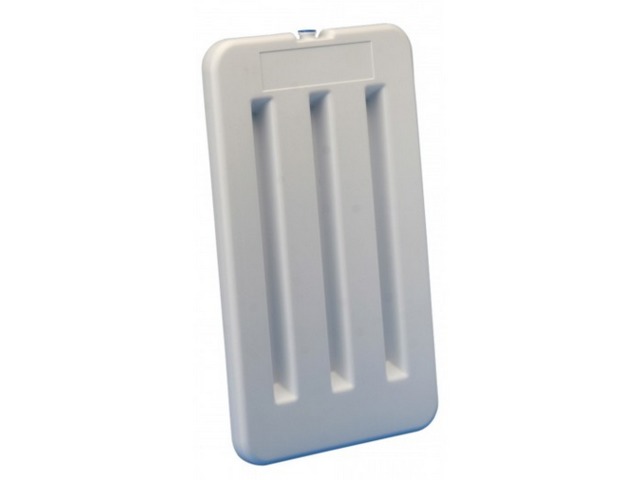

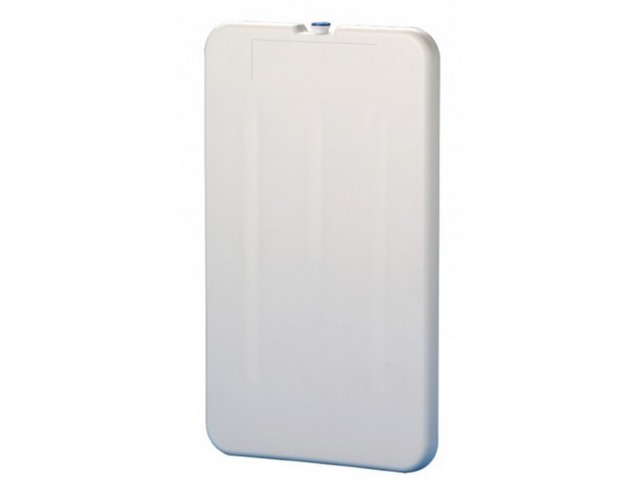

Eutectic plate PL480

Eutectic plate

DIMENSIONS:External (Lxlxh): 345 x 275 mm (±5 mm) Internal(Lxlxh): 120 x 185 mm (±5 mm)Useful (Lxlxh): 120 x 185 mm (±5 mm)VOLUMES:Internal: 0.650 Litre (average, it is not a parallelepiped)Useful:...

Ask for a quote

Presentation

Our eutectic plates are a great solution for your cold chain supply needs. Designed for everyday use, as well as for professionals - pharmaceutical, medical, as well as the food industry.

For a maximum conservation of your products, please refer to our page COOL kits for the unbeatable duo of our eutectic plates and insulated containers or coolers.

The eutectic liquid's high performance and its high density polyethylene plate guarantees your cold supply chain needs.

Instructions for use: Before each use, it is necessary to freeze the eutectic plate by laying it flat in your freezer during at least 24h at a temperature that is at least 6°C below the temperature of the eutectic liquid inside the plate.

It is recommended to freeze the plates horizontally, leaving 2cm of space between each in order to successfully solidify the eutectic liquid.

Once the plate is frozen, remove it from the freezer and place the eutectic plate in your insulated container. It is important to handle your eutectic plate very carefully once frozen, as it becomes very sensitive to shock.

Technical features

Dimensions : 480 x 280 x 28mm Weight : +/- 2,9kg High performance eutectic liquid Non toxic liquid, biodegradable Suitable for food contact High density polyethylene (HDPE) Ultrasonic welding techniques
