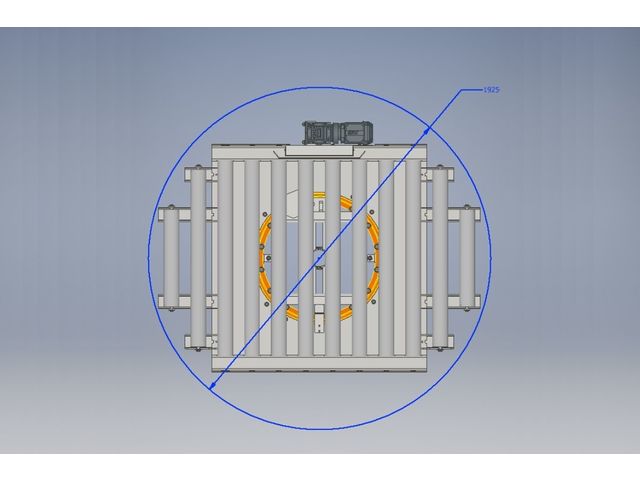

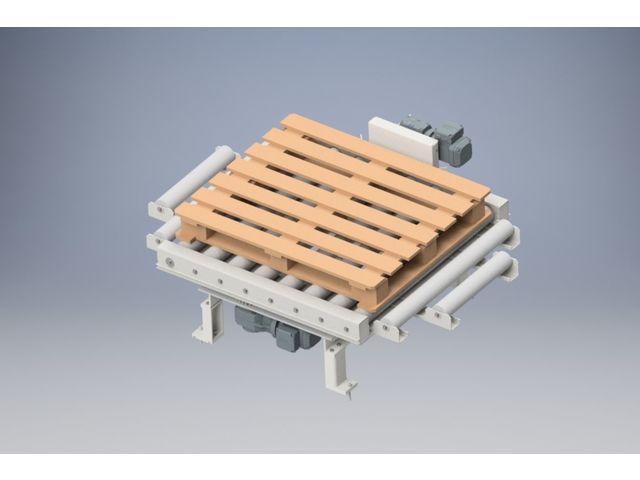

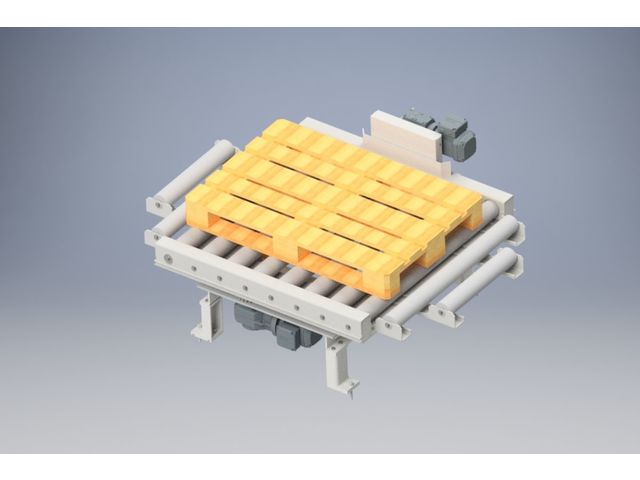

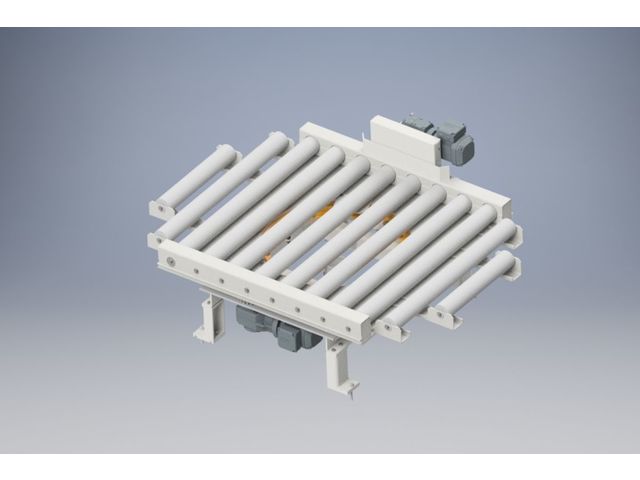

EU pallet turntable - rotation up to 360° degrees

Rotating table for conveyor

“ This 360° rotating station can be integrated into an existing pallet handling line. It is also possible to integrate this rotating station in a new handling line. This roller turning station is fully automated thanks to its electric motor. ”
Ask for a quote Receive Documentation Contact the supplier


EU pallet turntable - rotation up to 360° degrees:
Roller turntable, without side covering. This turntable is suitable for Europe pallets: 1200*800mm & 1200*1000mm.

Chassis:
- Metal frame made of folded sheet metal thickness: 40/10th
- Supporting feet adjustable in height by screw jack


Rollers :
- Zinc plated steel Ø 89, thickness 3mm, axle Ø 20mm, pitch 151 mm.
- Double sprockets with 15 teeth for chain at 15,8mm pitch
- Height on rollers 500 mm +/- 50 mm


Drive unit :
- Fixed speed gear motor placed under the unit
- Speed of rotation: 90°/4s


Electric :
- Without electrical control equipment, except for the geared motor


Load capacity:
- Per pallet : 1200 kg

REF : RT187001
