Energy36: Multi-lines electric meter and analyser

Technical Building Management

“ Savings • Savings due to « open tores » measurement which allows a very rapid installation. • Savings due to the cordless communication which prevents wires network between the multi-lines meters ENERGY36. • Savings with the modular design of the multi-lines meter which allows to adapt the number of measure boards to the number of lines to measure. • Savings with the « Plug and Play » design, which optimizes setup. ”

Ask for a quote

Presentation

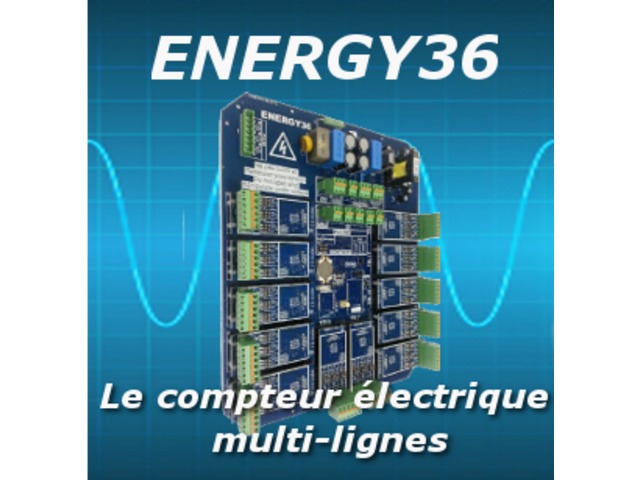

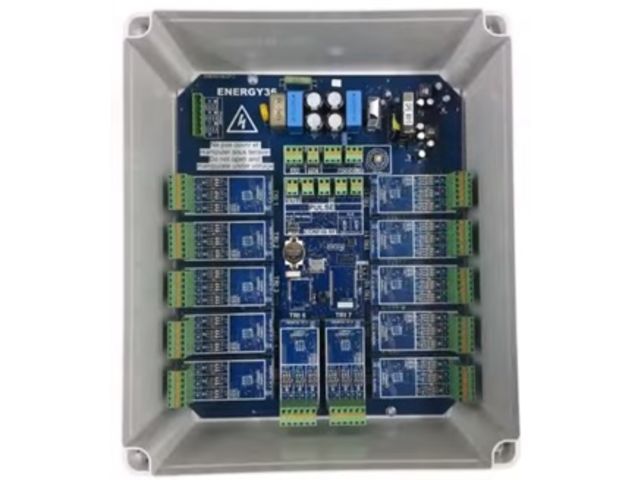

The meter ENERGY36 is designed for the multi-lines electric counting. It measures and analyzes simultaneously up to 36 lines.
The data available due to its network analyser functions (rating, current, voltage, active energy, reactive,THD) allows to a deep analysis of the electric data.
It perfectly fits to the project of energy counting and efficiency.

Measurement and analysis Simultaneously measures and analyses 1 to 36 uniphase electric lines or to 1 to 12 triphase lines on only one ENERGY36.
You can install up to 10 ENERGY36 on only one cordless network. As a result, you can collect the measurement data, on a whole plant and up to 360 electric lines. For each uniphase and triphase lines you can analyse the following:

- Active rating

- Reactive rating

- Apparent power

- Harmonic

- Voltage

- Current

- Frequency

- Line disturbance

More information on http://www.energymeter.fr

Technical features

The meter ENERGY36 is deisgned for multi-lines electric counting. ENERGY36 is fast installed and easily implemented in your environment. ENERGY36 is compatible with BMS/BAS and energy efficiency projects ENERGY36 measures and analyzes simultaneously up to 36 lines. The data available due to its network analyser functions (rating, current, voltage, active energy, reactive,THD) allows to a deep analysis of the electric data.
