EMC-optimised motor cable, low-capacitance, double-screened, certified

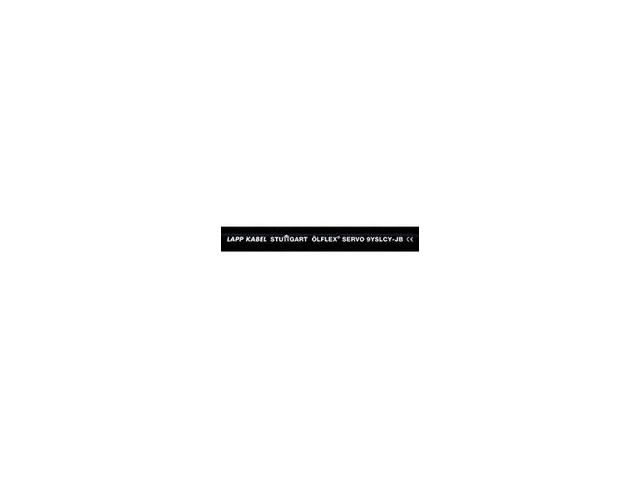

ÖLFLEX® SERVO 9YSLCY-JB - double screened power cable for large servo drive systems with high electrical load, UL/cUL certified
-
AWM certification for USA and Canada
-
3+3 symmetry reduces common-mode interference effects and bearing currents
Benefits
-
EMC-compliant installation of power drive systems conforming to EN 61800-3
-
High power transmission for large drives
-
Low capacitance design enables longer cable connection between frequency converter and motor
-
Symmetrical 3+3 Version supports the reduction of damaging bearing currents
-
Versions with black outer sheath are suitable for outdoor use
Application range
-
Connecting cable between frequency converter and motor
-
In dry, damp or wet interiors
-
Paper industry
-
Chemical industry
-
Heavy industry
Product features
-
Flame-retardant according to IEC 60332-1-2 & CSA FT1
-
EN/VDE +90° C PP insulation
Norm references / Approvals
-
USA: AWM Style 2570 or 20886, 1kV 80°C VW-1
Canada: AWM I/II A/B 1kV 80°C FT1
-
UL File No. E63634
-
Based on VDE 0276, 0250, 0207

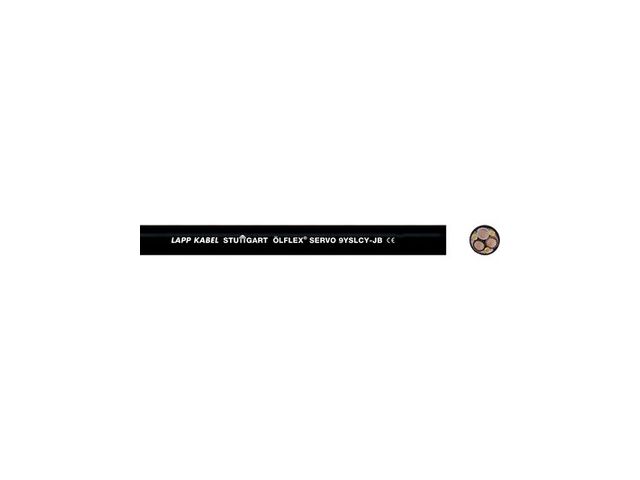

Product Make-up
-
Fine-wire, bare copper conductor
-
Core insulation: polypropylene (PP)
-
Cores twisted concentrically (symmetrically splitted protective conductor of 3+3 version is gusset-filling divided between the power cores)
-
Screening: wrapping of laminated aluminium foil in combination with tinned copper braiding
-
4-core design: transparent PVC outer sheath
-
3+3 core version: PVC outer sheath, black
