Elevah 75 Tires

A special stock picker with a double tool to lift a tire set from the ground and to store or pick it up.

MAIN FEATURES OF THE MACHINE

• Tool max. working height: 6,3 m
• Standard: tyres storage system with single adjustment (stroke). Optional: double adjustment (stroke/slope) - Item 75TI.2REG
• Tool max. capacity: 150 kg
• Width of the short side: 78 cm
• Side tool rollers with adjustable height and adjustable width to make storage operations easier.
• Turning radius = 0
• Self propelled when raised at the maximum height

Main features of the special tool:

• It allows to lift a tire set directly from the ground
• (Optional) Automatic adjustment of the inclination
• Automatic adjustment of the stroke to set the distance of the tires from the operator

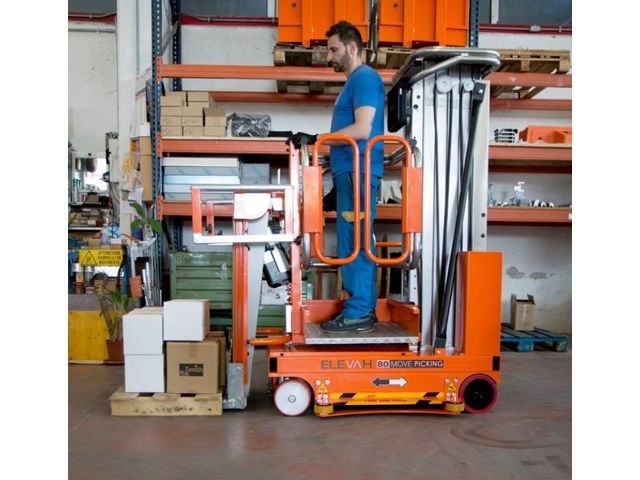

Self-propelled and compact (it's only 78 cm wide!) and with a turning radius = 0, it can be used also in very tight spaces, as between the shelves or enter in a lift.

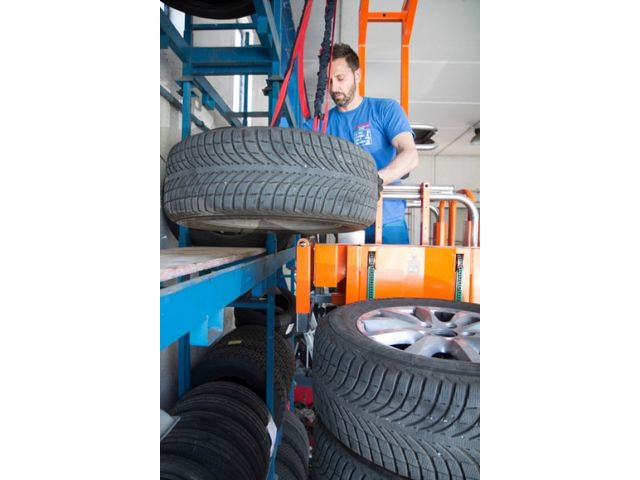

During all the operations of the storage the operator doesn't need to go up and down of the machine. He only has to adjust the tool and roll the tires on the shelves. In that way the operator can storage in a few time also complete wheels (rim and tyre) and/or big tires (the max. capacity of the tool is 150 kg).

OPTIONAL: possibility of adding an arm with lifting ropes for stowing tyres flat. It helps to move the tyres from the tool to the shelf without lifting it. The operator doesn't make any effort and always keeps the correct position.

The machine can work at temperatures between -15° C and +40 °C
