Electronic Vacuum Switch, PSP100CX series

Extrusion plants need extremely reliable units with high pumping consistency and a configuration to suit each application. The modular design of extrex ® gear pumps makeslight work of...

“ . 1 adjustable digital output . Adjustable hysteresis . Measuring range: 0 / -1 bar . Overpressure: +3 bar . PNP ”

Ask for a quote

Presentation

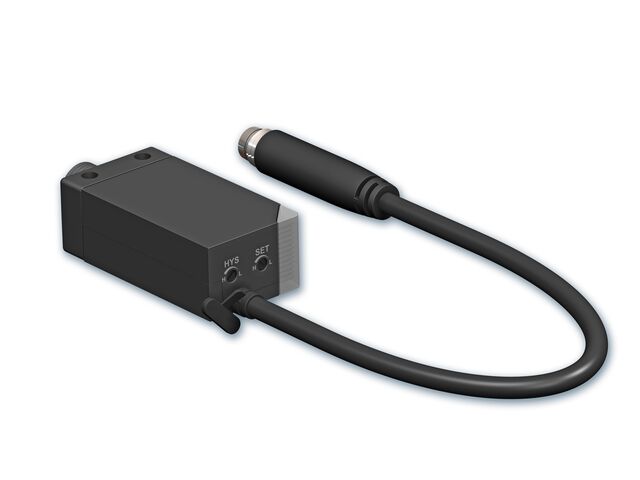

The electronic vacuum switch PSP100CX integrates standard threshold and hysteresis adjustment. It is equipped with two vacuum connections (G1/8»-Male, M5-Female) and an M8 connector 4-pin for electrical connection.

Advantages:
. 1 adjustable digital output
. Adjustable hysteresis
. Measuring range: 0 / -1 bar
. Overpressure: +3 bar
. PNP

Specifications
. Compatible fluids: All non-corrosive, filtered, non-lubricated gases
. Supply: Regulated 12-24 V DC
. Current consumed: < 21 mA
. Transistor output: NO 80 mA with 24 VDC
. Output viewing: LED
. Response time: < 5 ms
. Threshold adjustment: By 3/4 turn potentiometer
. Hysteresis adjustment: 0 to 10% adjustment by 3/4 turn potentiometer
. EMC: Industrial standard class B
. Materials: PA 66, brass and Alu.
. Operation temperature: 0 to 50 °C / 32 to 122 °F
. Stockage temperature: -20 to 60 °C / -4 to 140 °F
. Protection: IP 40
. M8 connector 4-pin (cable length: 0.3 m)
. Weight: 22 g
