ELECTRONIC TORQUE TESTER SENSOTORK® 7707 W

Electronic torque tester for torque wrenches SENSOTORK® 7707 W

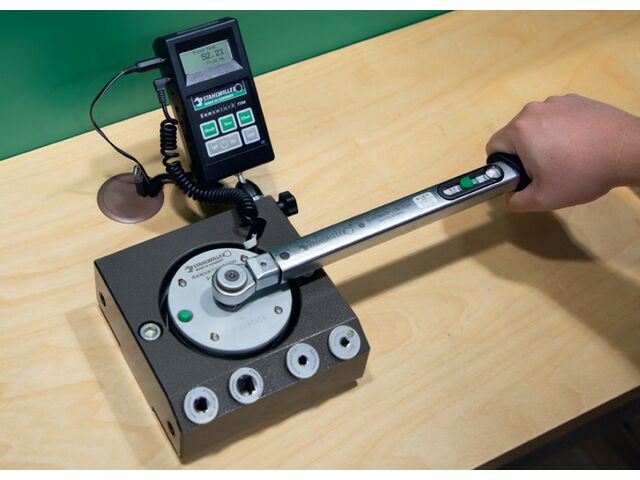

Compact torque tester for easy adaptation by replacement of the transducers. High degree of accuracy thanks to flat transducer and conversion and digitalisation of readings within the transducer. High degree of safety through display showing actual torque read-off where clicking torque wrenches are used.

it for attaching the unit to a workbench or wall in a horizontal or vertical testing position for clockwise and anticlockwise use. Units of measurement: N·m, ft·lb, in·lb. The easily interchangeable transducers are attached to the holder by means of a QuickRelease safety lock. Low lateral forces thanks to low-profile transducers, automatic detection of the transducer, flexible and user friendly because the unit can be used horizontally or vertically and the display unit can be placed in many positions, additional tripod with 1.5 m cable for mounting the display unit to facilitate visual monitoring when using longer torque wrenches, especially broad measuring range from approx. 2% to 100% of rated value. The software No 7759-4, including USB hub and jack cable , enables readings to be transferred to the PC for documenting (no separate power supply needed, power comes from PC). While individual transducers are being recalibrated, the torque tester itself remains on-site for further use. Wide range of application (-20°C to +60°C). Complies with DIN 51309: 2005, Class 2 and DKD-R 3-8: 2003. With certificate. Supplied in sturdy plastic case

QuickRelease

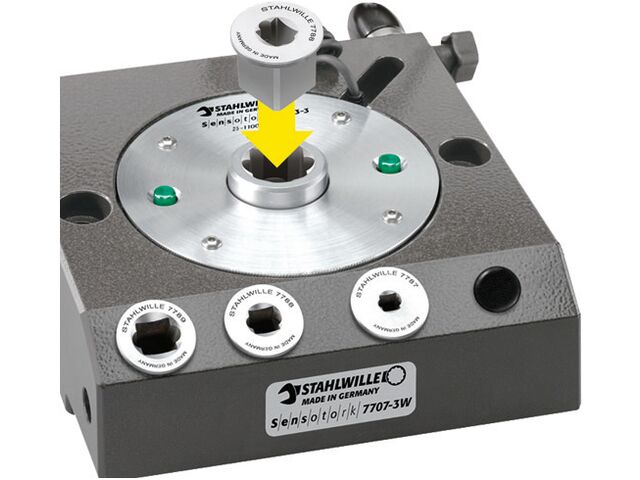

Rapid change and firm locking of the transducers thanks to the QuickRelease safety lock.

Interchangeable square drive adapters:

A set of interchangeable square drive adapters are conveniently stored in the mounting block for a range of different drive sizes
