Electrolysis system CHLORINSITU® V plus

This product is temporarily unavailable.
Think about consulting similar products.

“ - Production and metering of ultra-pure hypochlorous acid combined with sodium hypochlorite production -Chlorination and pH adjustment with a single system -Safe system control with remote diagnosis by Remote Control Engineer -Excellent service life of the diaphragm cells, thanks to constant vacuum -A frequency-controlled circulation pump maintains the vacuum constant in the enclosed anode area -Maximum operating safety due to their design as negative pressure systems -Active process control of production by largely internal measuring and control technology -Cost-effective operation thanks to the use of sodium chloride as an inexpensive raw material and no consumption of chemicals for pH adjustment -Peak demand can be met by the presence of a daily supply of sodium hypochlorite -Complete disposal of the diluted brine, nothing is fed back into the process water to be treated -Comparable with pure chlorine gas in terms of oxidation strength, chloride and chlorate content in the process water -Robust technology - Compact, space-saving design ”

Ask for a quote

Presentation

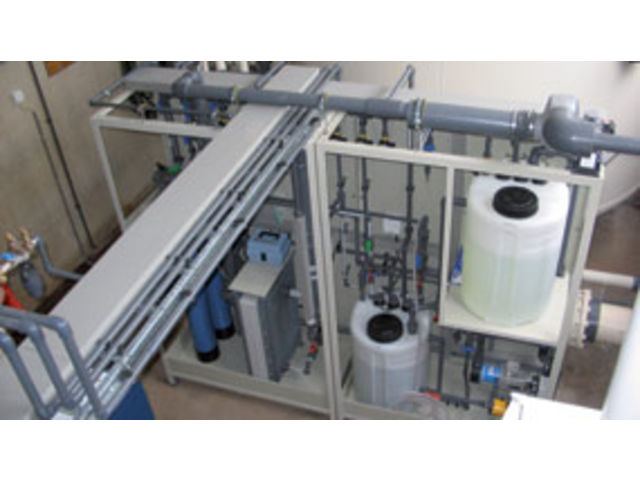

Electrolysis systems of type CHLORINSITU® V Plus generate ultra-pure active chlorine combined with a sodium hypochlorite solution in a vacuum process.

Technical features

-Electrolysis plant mounted ready for operation on a powder-coated stainless steel frame with programmable logic controller (PLC) in control cabinet - integrated softener - electrolytic cell - pH value monitoring of electrolysis - ATEX-certified bleeding system and side salt dissolving tank with level monitor - Level sensors to monitor the storage tanks for sodium hypochlorite to be provided by the customer - The scope of delivery also includes a central injector system matched to the plant to meter chlorine gas, sodium hypochlorite and sodium hydroxide, inclusive of a booster pump - Automatic monitoring of the water hardness downstream of the softener and chlorine gas detector for plants from 600 g/h

Usage scope

all applications which require metering of hypochloric acid with simultaneous pH value correction
