Electro-Pneumatic Glass Cradle 300 kg

Series : KAP-N Bottom drain ball valveDesign : ISO or ISO and flanges drilled according to ASME/ANSI Housing material : Ductile cast iron EN-JS 1049Lining material : PFANominal size : DN 50/25 to...

“ • Control components integrated in a box • Suction cups with adjustable position • Suction cup support arm with adjustable position • Suction cups with protective cover • Box wired to receive a radio control • Can be installed very easily on the GRM 250 Glass Robot ”

Ask for a quote

Presentation

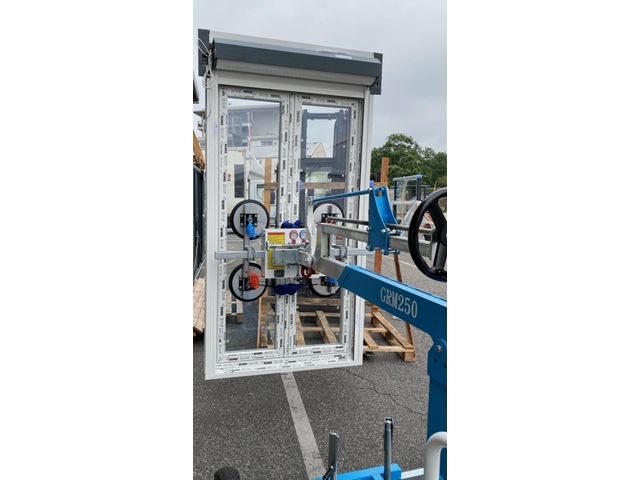

The EV-300 electro-pneumatic glass cradle is an autonomous device intended for the handling of all glass on site or
in the workshop.

Due to its design, it also adapts without modification to the GRM 250 glass robot replacing the manual pump suction
cups.

In order to comply with regulations:
• Double air circuit (each circuit has its own supply).
• Each air circuit is connected to its set of suction cups (blue and red pipes)
• Double visual and audible alarm system in case of air drop
• Double vacuum level indicator
300 mm diameter suction cups:
• With specific seals to limit the impact of the product on the glazing
• Adjustable position on each support arm (each arm is also adjustable on the structure)
• With individual protective cover
The box contains all the control components, including the 12 V battery and its automatic charger.
A protection fuse (external access)
Thanks to its design, it is also possible to add a KSF radio control without modification.

Technical features

Double air circuit (each circuit has its own supply). Each air circuit is connected to its set of suction cups (blue and red pipes) Double visual and audible alarm system in case of air drop Double vacuum level indicator 300 mm diameter suction cups: With specific seals to limit the impact of the product on the glazing The box contains all the control components, including the 12 V battery and its automatic charger. Thanks to its design, it is also possible to add a KSF radio control without modification.

Download the complete technical features
