Presentation

The all-rounder
Features:
•Capacity from 1.250 kg up to 60.000 kg
•Heavy duty planetary gearbox and aluminium braked motor
•Single phase or three-phase motor
•Protection class IP54 – 66, duty cycle 60% - 100%
•Low-maintenance , open construction
•FEM classification M4 (1Am) or higher
•Frame and drum form a firm, welded structure
•Documentation alternatively in German or English
•Test book and EC Declaration

Options:
•Rope and hook completely mounted, more rope outflow
•Grooved and longer drum, disengaging clutch
•End switches, slack wire switch and drum pressure roller
•Protective drum cover and special coatings
•ATEX and entertainment version

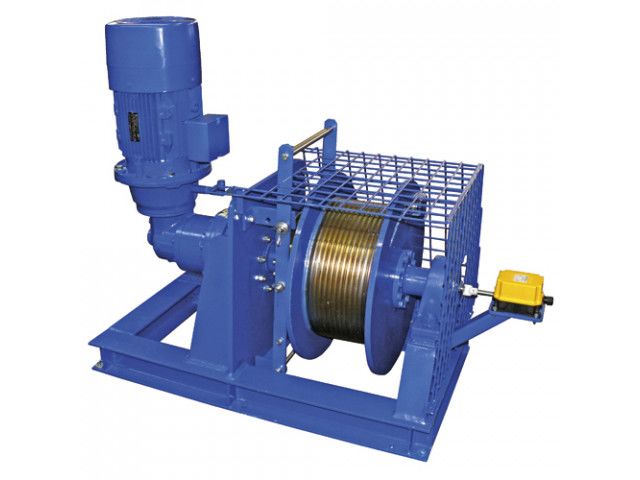

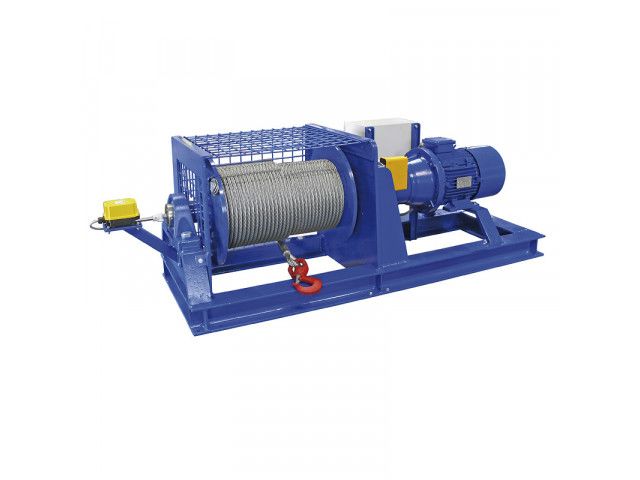

The standard build PHW-E type winch provides the basis of the solution to many pulling and lifting winch applications. The winch is constructed in the conventional manner with motor, gearbox and drum in line. When it comes to the need of a shorter design the PHW-E winch is available with a angular gearbox. The choice of the rope complies with the pulling force in the 5th rope layer. The drum is build according classification 1Am. The drum diameter is at least 16-times bigger than the diameter of the indicated rope diameter. Although the name of this winch indicates different, these winches are very suitable to fit to your specific winch application and can be equipped with different drums, other gearboxes or motors. Many options can be offered on these highly versatile winches. The standard version comes without a rope and control.
