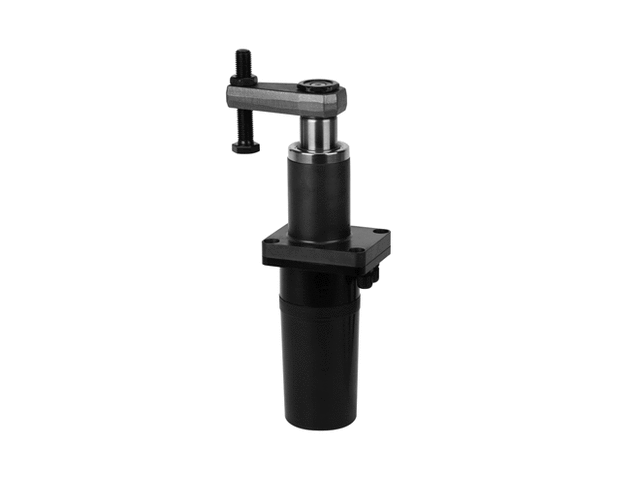

Electric Swing Clamps B 1.8310

Application Electric swing clamps are used for clamping or holding of workpieces - where the use of hydraulic clamping elements is not possible - where the clamping force must be maintained also after the separation from the energy supply - when clamping elements have to be controlled individually - when an extended functionality is required for automated systems - when the clamping and holding points shall be free for loading and unloading of the fixture Electric swing clamps are particularly suited for: • Packaging industry • Test systems • Special machines • Assembly equipments and robotics • Automatic manufacturing systems • Clamping fixtures with workpiece loading via handling systems

Advantages
? High clamping force
? Adjustable clamping force
? Clamping force monitoring (error code output)
? Can be controlled individually or in common
? High operating safety by self-locking spindle drive
? Mechanical reclamping by Belleville springs
? Swing angle up to 180° available
?Overload protection device in the case of collisions with the clamping arm
? Electric position monitoring and extensive self-monitoring with error message
? Clamping stroke control possible
? Low voltage 24 V
? Leakage free
? Maintenance free (500,000 cycles).
? Code class IP 67
