Electric Portable Glass Lifter for winter garten | CA 400 GL

Elevator

“ No need to use any tools for the operation, it take only 30 seconds to complete machine set-up. Can be transported by van or estate car ”

Ask for a quote

Presentation

Our range of portable lifting equipment for glass patio roof and wintergarten will give your business the edge over your competition.

Lifting machine

No need to use any tools for the operation, it take only 30 seconds to complete machine set-up.
Sliding rails for the capacity of 120 kg (for CA 400 GL)
The overall stability is ensured by 4 feet equipped with locking wheels, for use also on sloping ground
A level ensure the proper set-up while ajusting the feet
Equipped with handle and transport wheels to move easily on site
Can be transported by van or estate car
Design Upter, to work close to the wall

Electric motor

The electric lifting motor is 110 V or 220 V
Electric remote control with variable speed switch.
Manual operation is possible in case of power failure
Automatic slipping clutch to prevent over weight loading
Emergency stop button: Pressing this button stops raising or lowering immediately in case of emergency.

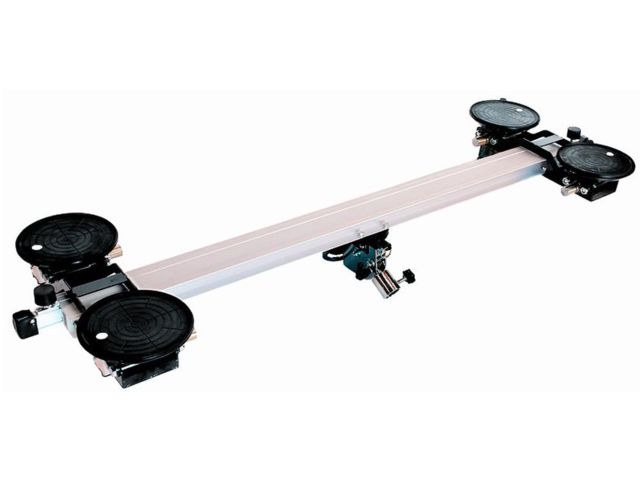

Cradle with vacuums

Safety suction pump, diameter 200 mm (certified TÜV and GS) unit capacity 65 kg, a red line on the pump’s plumger serves as a vacuum indicator
Designed for horizontal or vertical lifting (angle adjustment up to 90° for CA 400 GL)
With 4 vacuums and outriggers for glass up to 4 m (for CA400GL)

Technical features

No need to use any tools for the operation, it take only 30 seconds to complete machine set-up. Sliding rails for the capacity of 120 kg (for CA 400 GL) The overall stability is ensured by 4 feet equipped with locking wheels, for use also on sloping ground A level ensure the proper set-up while ajusting the feet Equipped with handle and transport wheels to move easily on site Can be transported by van or estate car Design Upter, to work close to the wall The electric lifting motor is 110 V or 220 V Electric remote control with variable speed switch. Automatic slipping clutch to prevent over weight loading

Download the complete technical features
