Electric chain hoist - PEH - KH Lift

Electric chain hoists

Ask for a quote

Presentation

for the handling sector
Features:
•Capacity up to 250 kg
•Classification according to FEM in engine group 2m
•Operation by ergonomic single-handed operation (max. 3 m).
•Contactor control with 42 V control voltage

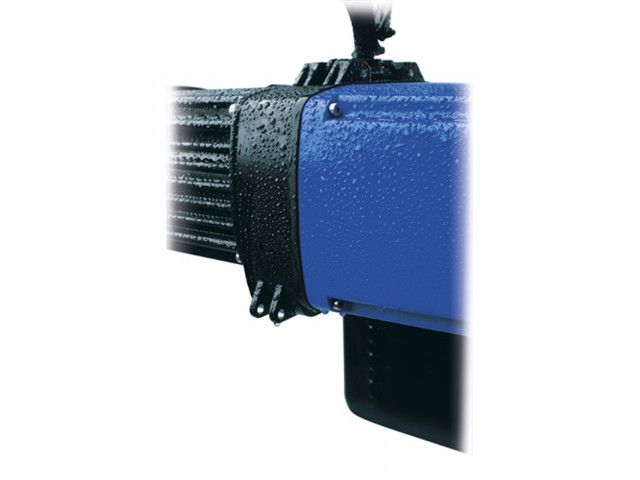

•Protection class IP 65
•Geared limit switches for highest and lowest hook position
•Overload protection by slipping clutch
•Range of utilisation between -15° and +50°
•Operating voltage 3 / 400 Volt / 50 Hz

Options:

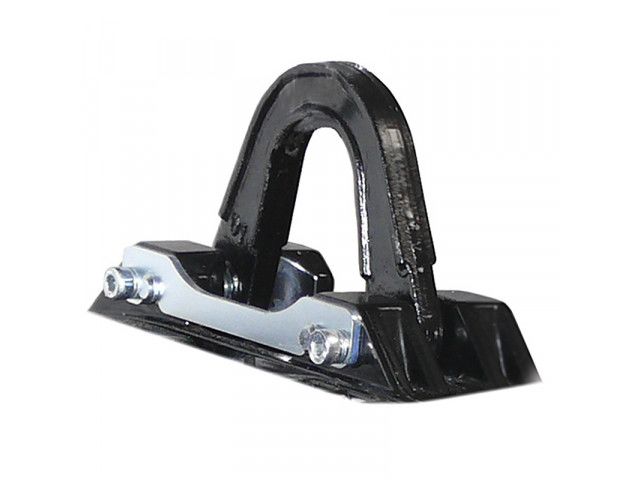

•Hook suspension
•Other operating and control voltages
•Trolleys manually operated
•Fast hoisting speeds
•Version for food industry

Description

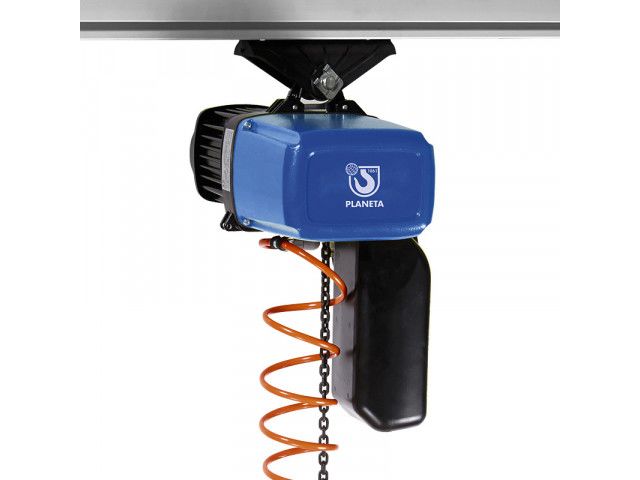

The PLANETA PEH-KH is based on the PEH electric chain hoist and is ideally suited to the safe and speedy handling of loads with single-handed operation. The load (hook or other receptacle upon request) is permanently connected to the controller. In this way, the operator only needs one hand to operate the chain hoist and to guide the load securely.
