Dynamic Tracking Measurement Software Module: VXtrack

Process control software

“ -Rate of up to 6600 3D points per second -6 DOF measuring (position and orientation) of a rigid set of reflectors -Synchronous measurement of the reflector set -Measuring volume from 9.1 to 16.6 m3(320 to 586 ft.3) -Real-time curve display in VXelements -Acquisition synchronization capability through external trigger input -Export to .csv format ”

Ask for a quote

Presentation

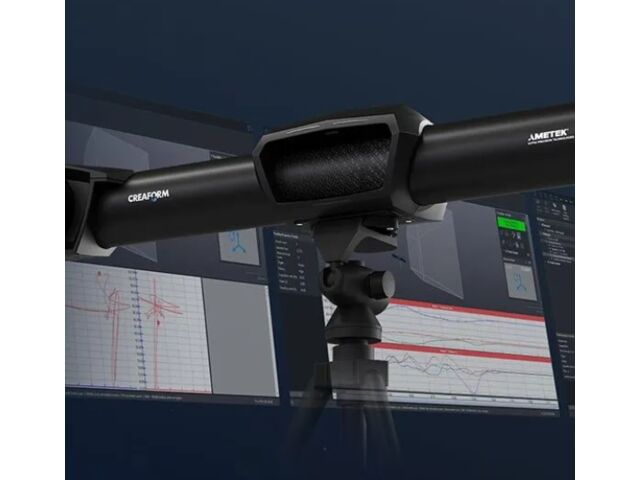

The VXtrack dynamic tracking module is a key component of VXelements, Creaform’s fully integrated 3D software platform. VXtrack also comes with a C-Track, which together forms a complete portable 3D measurement solution.

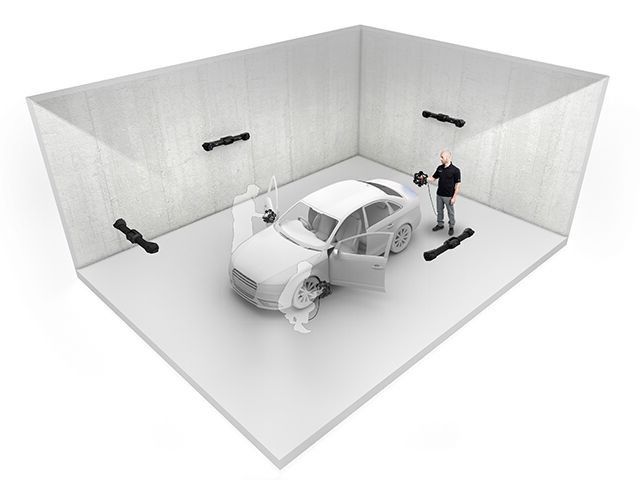

Thanks to VXtrack, you will accelerate your manufacturing and quality control processes—from assembly control and monitoring to crash-test dummy applications. It accurately and efficiently measures the positions and orientations of reflectors in space; all measurements can be taken simultaneously and accurately. This makes it possible to control displacements, drive assembly processes or measure deformations.

The C-Track comes with VXelements, which powers our entire fleet of 3D scanning and measurement technologies. It combines all the essential tools you need for your data acquisition process into a user-friendly, simplified and sleek working environment.
