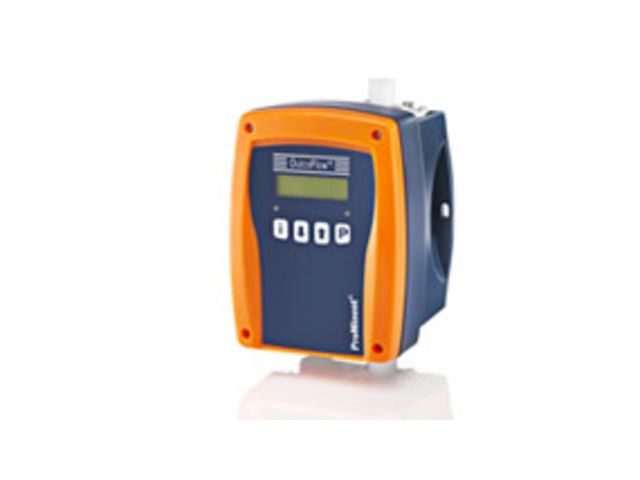

DulcoFlow® flow meter

This product is temporarily unavailable.
Think about consulting similar products.

“ - Maximum chemical resistance by the use of PVDF and PTFE - No electrical conductivity of the medium is needed - Measurement above stroke volumes of approx. 30 μl - Detection of gas bubbles in the feed chemical - No bottlenecks in the measuring tube - Media with small undissolved particles or with increased viscosity can be measured - A 0/4 -20 mA current output and a frequency output are available for remote transmission of the measured values. - Use as a single stroke monitor with feedback to the pump. This ensures that the metering stroke is performed within an adjustable lower and upper limit - Summation of the metering volume measured with stroke counter Intuitive user guidance and simple programming ”

Ask for a quote

Presentation

Your reliable control unit: unobtrusively measures, monitors and detects faults. A strong team together with the metering unit!

The flow meter DulcoFlow® reliably measures pulsating flows in the range above 0.03 ml/stroke based on the ultrasound measuring principle. The flow meter achieves maximum chemical resistance, as all wetted parts are made of PVDF and PTFE

Technical features

- 2 types and/or diameters of the measuring tube are available. - 2 LEDs for status display and stroke feedback - 2-line graphic display - 0/4 – 20 mA standard signal and 0 – 10 kHz frequency output for remote transmission of the measured value - Compact, chemically-resistant plastic housing - Measuring accuracy ±2% if the device has been calibrated to the chemical to be measured. Max. operating pressure 16 bar

Usage scope

surface treatment paper industry Measurement of aggressive chemicals
