DS HT, the high temperature plug and socket for smoke extraction fans

Electric connectors

“ Mounted on aluminium boxes, the DS HT (3P+E) 690 V connector is certified CSTB, means it can withstand 400°C for 2 hours. ”

Ask for a quote

Presentation

MARECHAL® DS HT socket-outlet provides power to smoke accelerators simplifying maintenance while resisting the conditions of standard NF EN 12101-3.
It is also a device for disconnecting power (cf. Articles 5.3 and 5.4 of the NF EN 60204-1 standard - Machine Safety - Electrical equipment of machines - Part 1 : general rules).

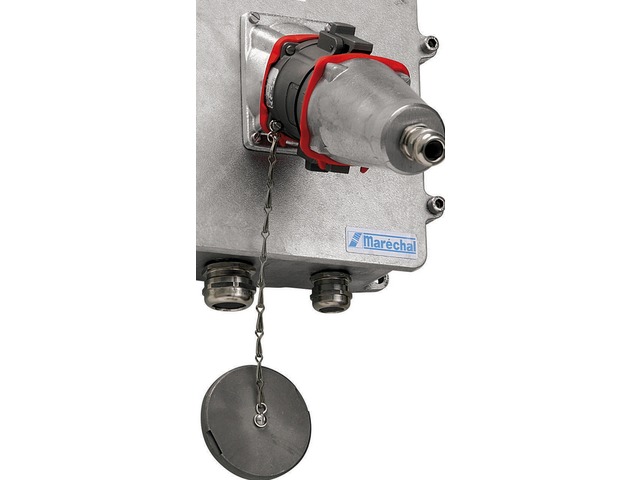

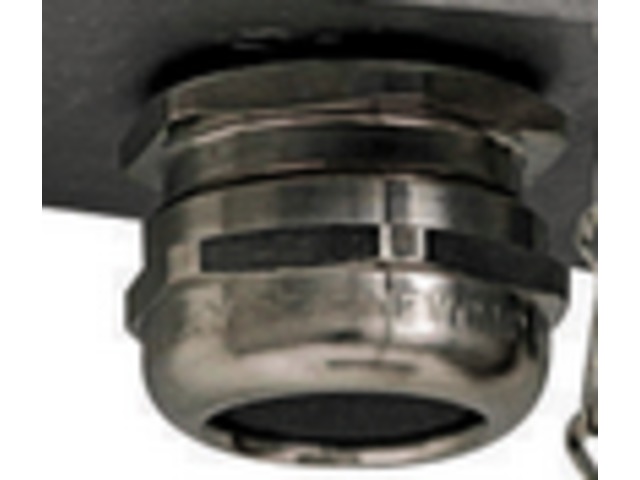

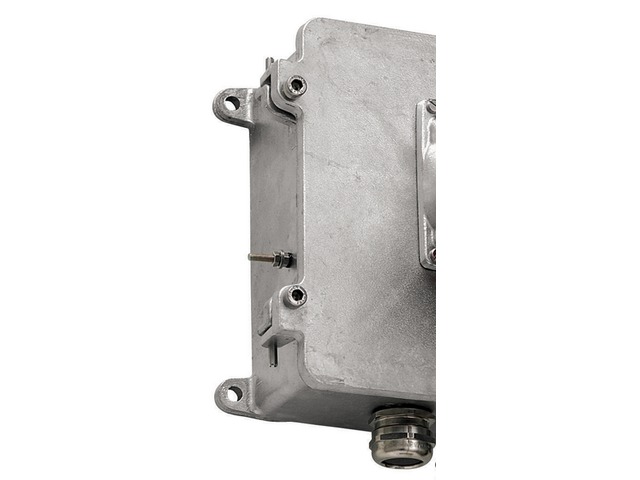

Mounted on aluminium boxes, the 3P+E 63 A / 690 V connector withstands 400 °C for 2 hours. The main cable, after cutting and stripping, feeds through cable glands and is wired on steel terminals mounted on a fire rated ceramic base. The box lid is fixed to the box by means of captive stainless steel screws.
- Electrical continuity of the main cable guaranteed to 400°C for 2 hours as the test program 5 of NF EN 12101-3 standard
- Breaking capacity AC-22 according to NF EN 60947-3
- 3P+E 90 A / 690 V
- Watertight socket IP66 according to the NF EN 60529.
