Drop Shape Analyzer – DSA100L

Structural analysis

“ Automated wetting analysis of large samples ”

Ask for a quote

Presentation

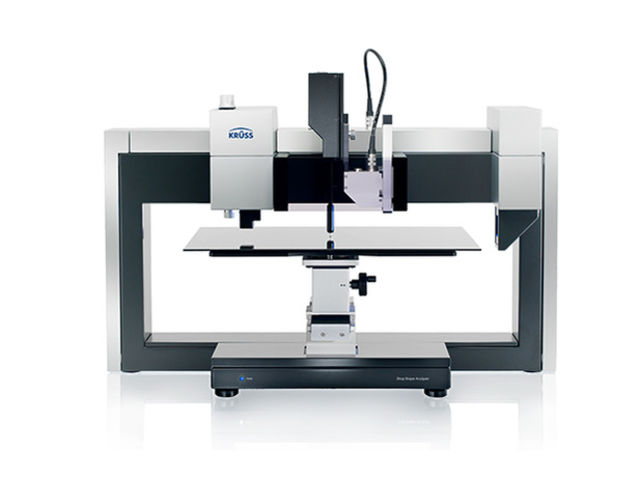

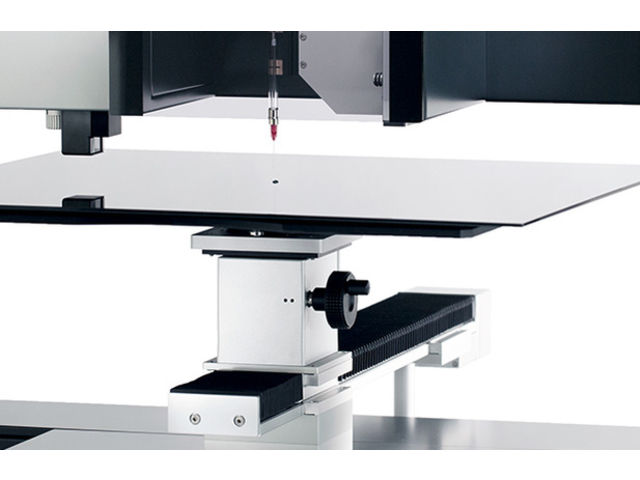

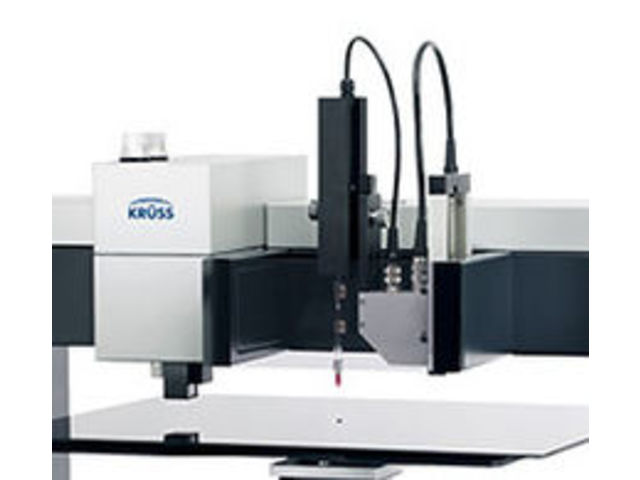

With the special version DSA100L of our Drop Shape Analyzer – DSA100, the instrument is fitted in a particularly wide frame and equipped with a large, rotating sample table plus an extra-long movement axis. Thanks to an adapted arrangement of the optics which is above the sample, almost the whole frame width is available for samples with an area of up to 500 x 500 mm.

Due to full software control of the axis, the sample table, and the single-dosing unit of the DSA100L, drops can be deposited and analyzed fully automatically on the whole surface of the sample. Mapping measurements with accurate dosing at virtually any number of pre-defined positions are also possible. This enables position-dependent wetting differences to be determined fully automatically.

Numerous upgrades are available for the DSA100L. For example, the measuring process can be standardized down to the smallest detail with the help of software-controlled zoom and focus settings and with a motorized lift table. In addition, our Liquid Needle dosing unit enables surface free energy determination with two liquids in less than a second at each measuring position.
