Dot peen marking head e10 i141

Turnkey Assembly System

“ Large marking window and reliable integrated marking machine ”

Ask for a quote

Presentation

The i141 machine has a good ratio compacity/marking window and was designed to be easily integrated on automated lines in whatever position you choose. It is easy to use and is suitable to mark parts of various shapes, surfaces and materials.

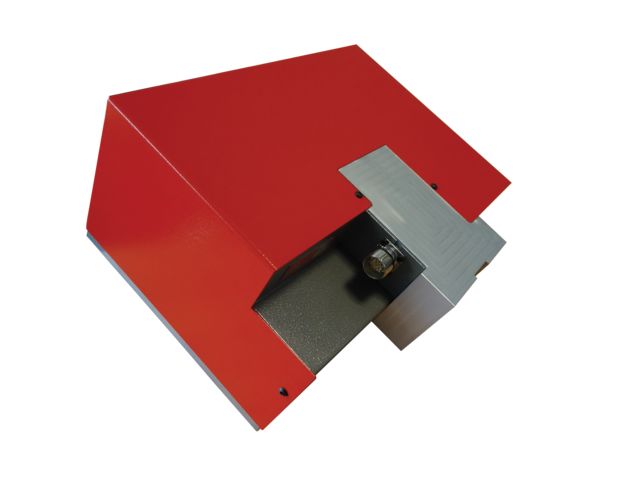

The internal components are protected by a steel case and flexible bellows allowing continuous industrial use. It allows quick dot peen marking on all types of materials, from plastic to hardened steel (up to 62Hrc).

The electromagnetic driving technology permanently marks parts of various shapes and surface finishes(flat, concave, convex, circular, raw, machined surfaces...) and does not require a separate pneumatic system.

Its use requires minimal maintenance and no consumables. The quality and accuracy of the guidance, the wide tolerance between the stylus and the part, the speed and power of the integrated software make it a high-performance tool.

The programming process and the disconnectable cable make it an easy-to-use product.

Mechanical technical features :

Marking window 150x100 mm
Dimensions 354 x 288 x 248 mm
Weight 12 kg
Connecting cable 5m, up to 15m as an option
Stylus Carbide 60 mm
Protective bellows steel
Automatic Z axis autosensing function optional (i141A)
