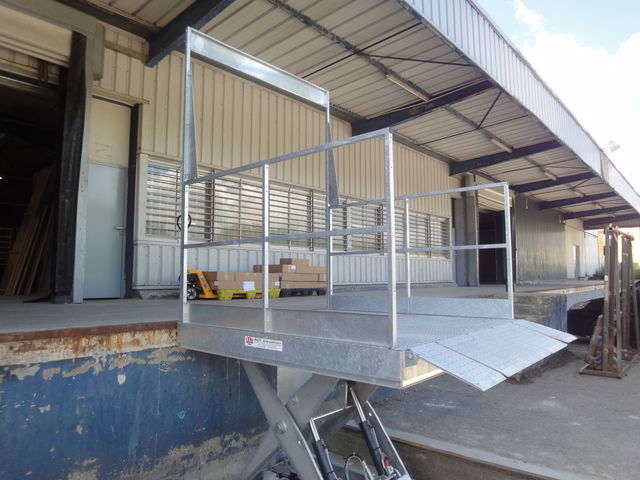

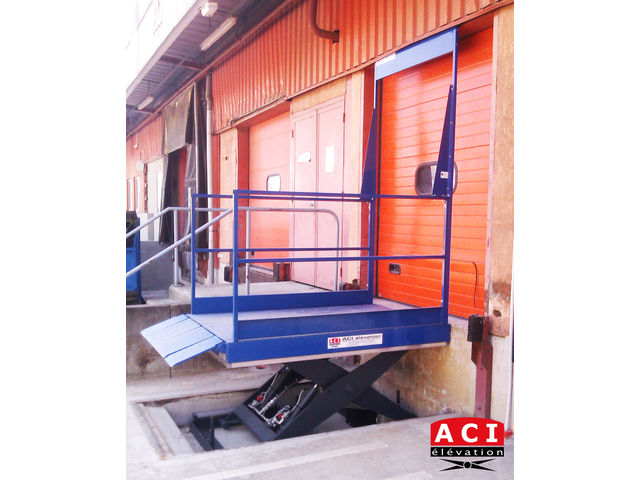

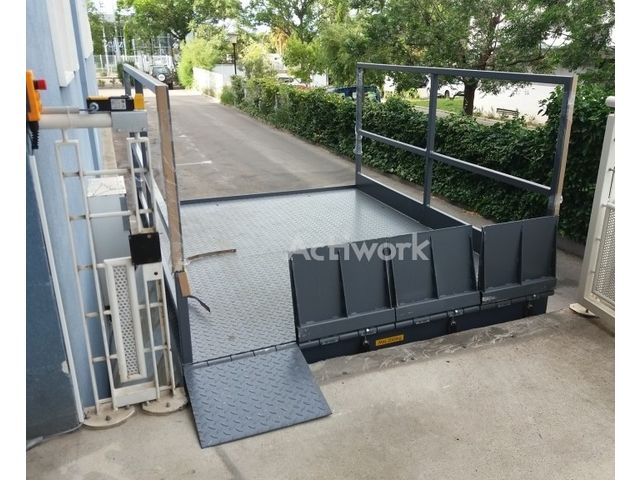

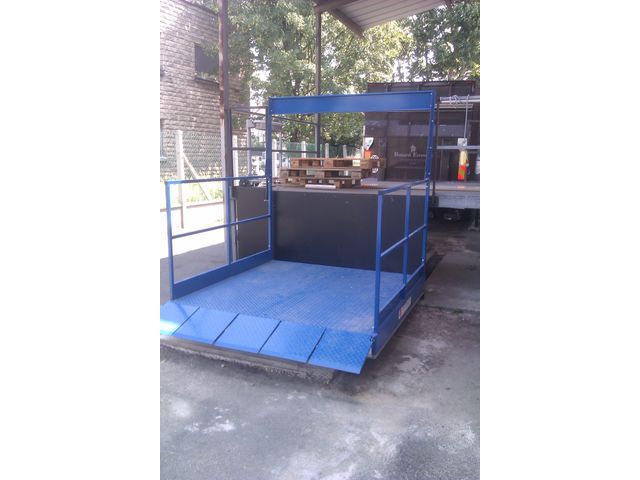

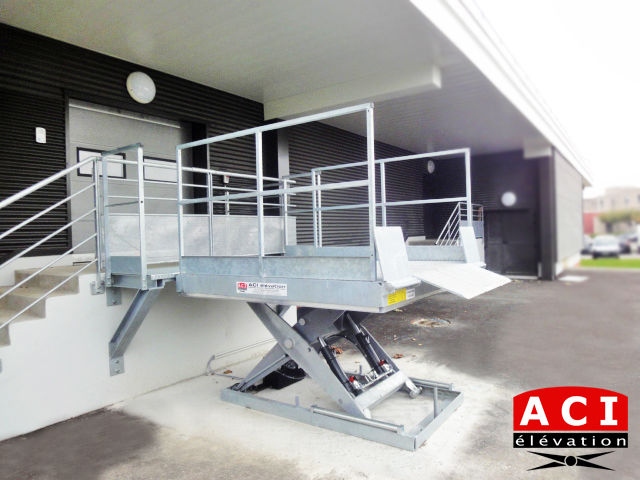

Dock lifting tables

Specially designed to compensate for the differences in level between docks and trucks.

Safe and easy loading and unloading regardless of the height of the dock or truck.

Optimizes productivity by saving time.

Different versions: painted steel finish, stainless steel… capacity of 500 kg, 1000 kg, 4000 kg… or more, dimensions and stroke on request.

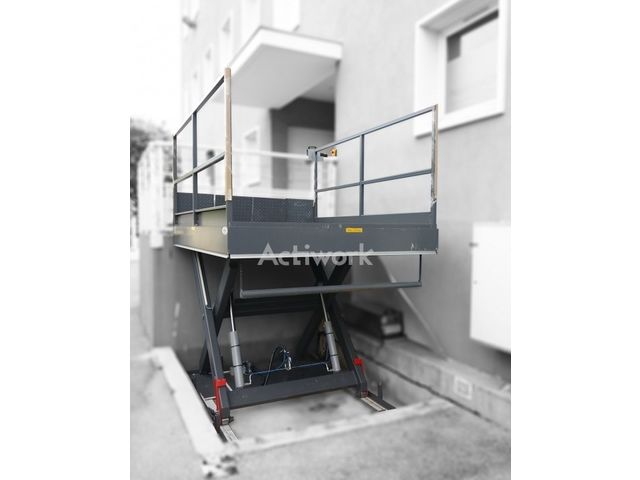

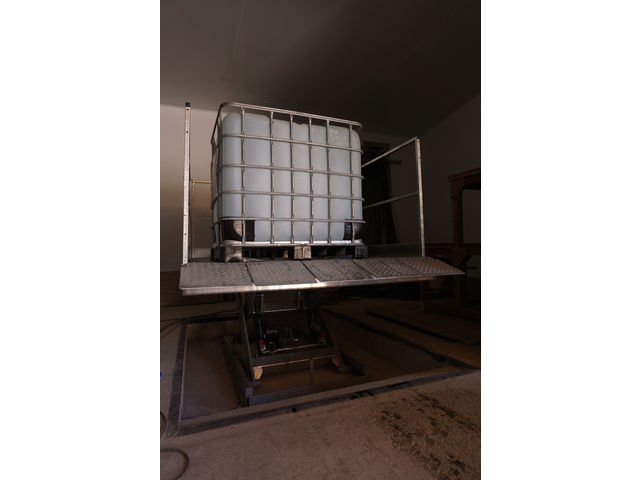

Possibility of installing in a pit.

Many standard or custom options available for a multitude of applications.

Technical characteristics :

- Supply voltage: 400 V Tri
- Control voltage: 24 V
- Number of cylinders: 2

Description :

- High resistance tubular scissors with bichromate steel shaft
- Self-lubricating rollers
- Folding safety crutch for maintenance operations
- Hydraulic cylinders positioned between the scissors cylinder rods in hard chromed steel
- 400V / 50 Hz three-phase remote hydraulic unit
- Anti-pinch safety frame in aluminum profile fixed to the periphery of the platform with contactors
- Adjustable limit switch in high position
- Exclusive design "dead man type" manual control unit with up / down button and "punch" type emergency stop on spiral cord length 3500 mm
- RAL 7015 gray epoxy finish
- Line protection power supply and connection to be paid by the customer.
- This material is guaranteed for 2 years, under normal conditions of use (8 hours per day per day and 5 days per week in normal atmosphere)
- lifting eye (optional)
- Non-slip upper wear plate
- Shutters connecting with the dock on a small side
- Separate hydraulic unit included in a waterproof box
- Safety barriers on the 2 long sides, one of which can be dismantled
- Landing feet under the table
- IP65 electrical components
- Reinforced paint for the exterior
- Reinforced platform for rolling trolleys
- level adjustment (slope of the pit bottom)
- Option included: key switch on the control box
