SENSOPART FRANCE SARL

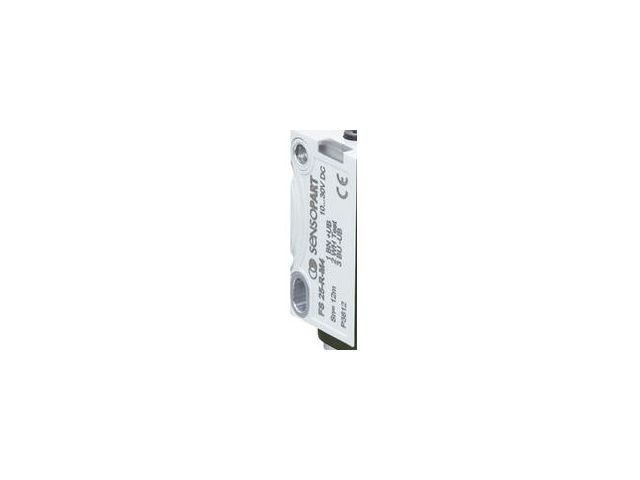

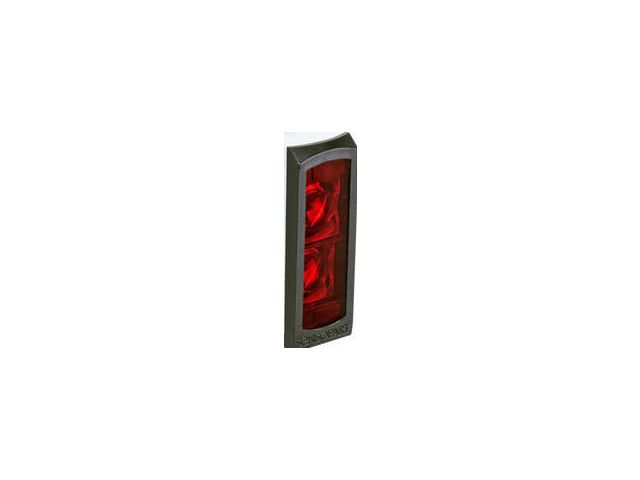

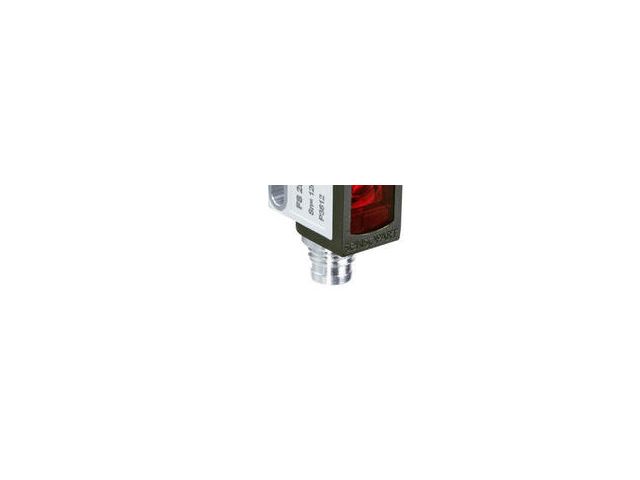

Distance sensors | FT 25-RA-170-PNSUL-M4M

Distance sensors

Operating range up to 1 m enables versatile applications in which precision at large distances is required Precise measurements thanks to repeatability up to 0.1 mm Switching hysteresis of 2...

Ask for a quote Receive Documentation Contact the supplier

  • Miniature housing for an easy integration and high flexibility -
  • High precision and high repeatability - especially for control tasks -
  • Almost surface independant detection - constant values on colored, glossy or reflecting objects
  • Separate adjustment of the analogue measurement range and switching output by an easy teach-in
  • Adjustable window mode (e.g. for two-step controls)
  • Invertible analogue characteristic
  • IO-Link
- Type: F 25
- Typical resolution: ~ 0,68 mm
- Light Type: LED, red
- Range: 200 mm
- Connection type: Metal plug M8 4-pin
- Switching output: Analog/IO-Link
- Supply voltage: 13 - 30 V DC
