Displacement measurement sensors - OD Precision

Distance sensors

Ask for a quote

Presentation

The OD Precision is a high accuracy, optical measuring system for measuring difficult object surfaces. In addition to glossy and dark black surfaces, it can also measure transparent and semi-transparent materials.

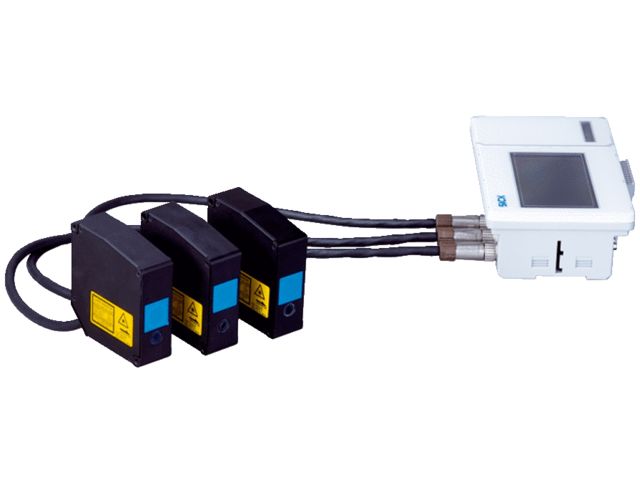

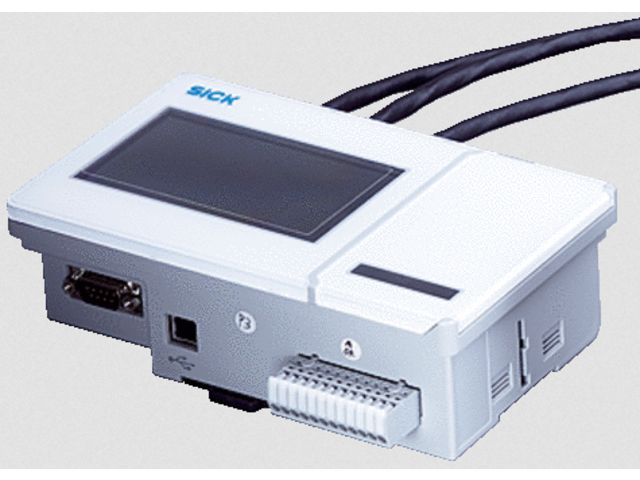

The OD Precision is the only displacement measurement sensor that can connect three sensors to one controller, which reduces the amount of hardware required and makes it easier to measure the x-, y- and z-axes., e.g. for measuring the evenness of surfaces.

In order to reduce investment costs, the sensor can also be operated via RS-422, thus eliminating the need for a controller unit.

At a glance

Numerous measuring ranges from 24 mm ... 26 mm to 300 mm ... 700 mm
CMOS receiving element for measurement independent of surface
Maximum measurement accuracy and frequency
Glass thickness measurement with just one sensor head
Various light spot sizes
Integrated calculations for up to three sensors
Stand-alone use via RS-422

Technical features

Non-contact measurement improves quality inspection during production Surface-independent measurement algorithms ensure minimum machine downtime, regardless of surface gloss or color Reduced processing times as a result of the high measuring frequency of up to 10 kHz Simple, cost-effective solution for challenging measuring tasks due to a variety of sensor models Optional stand-alone operation via RS-422 means the OD Precision offers maximum performance at lower investment costs High visibility LC display enables simple, cost-effective setup Many interfaces for simple integration into an existing production environment
