Gas analysis

- Overall length: 36 mm- For equipment engineering and industry- Up to 17 Bit Resolution Singleturn + 12 Bit Multiturn- Solid shaft 6 mm (Hollow shaft version: AD 36)- +100°C operating temperature-...

“ Key points: • An instrument air network is recommended. ”

Ask for a quote

Presentation

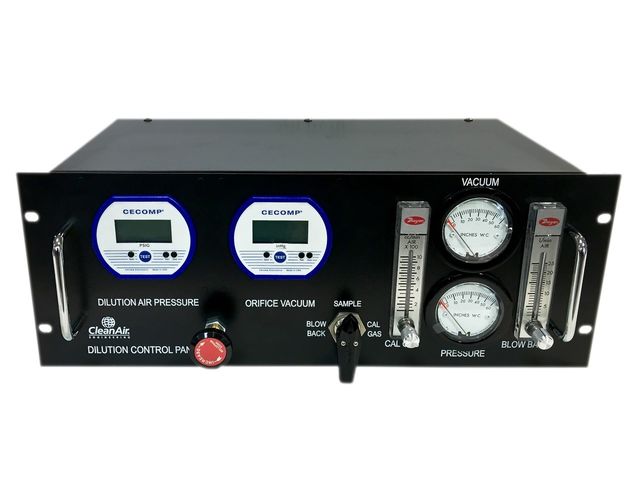

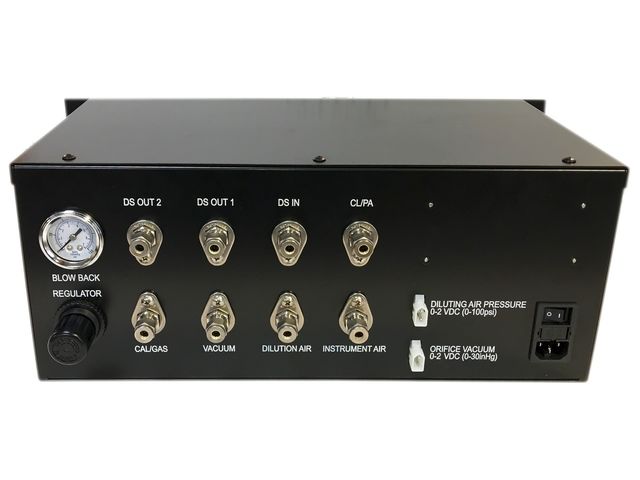

The Dilution Control Panel is designed for use with the EPM 797 Dilution Probe to monitor gaseous emissions with EPA Reference Method analyzers. The control panel includes calibration gas and blown air flow control, adjustable dilution air pressure, digital gauges, and a 0 to 2 VDC analog output for set air pressure. dilution and vacuum from the orifice. With this system, continuous on-site sample extraction has low flow rates, longer filter life, eliminates the need for heated sample lines, and transports the sample at positive pressure.

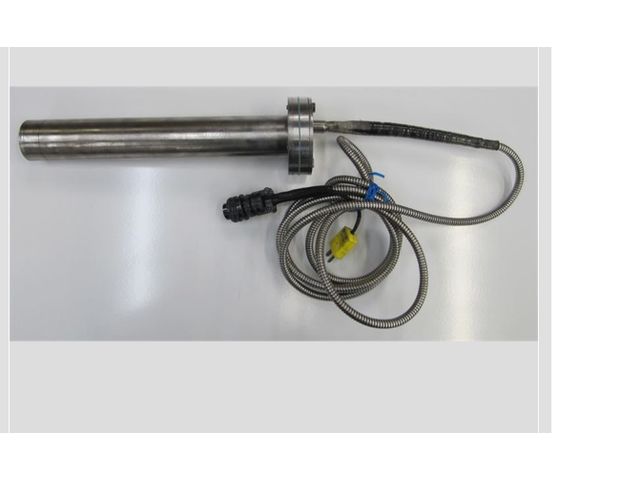

The dilution probe has sonic nozzles. It is ideal for reducing concentrations or drying a condensable gas by cooling.

Two versions are available: ATEX, and non ATEX

Technical features

• Dilution of ratios 1/16 up to 1/300 • Requires zero instrument air on site at 5 bar • Requires a high-grade standard gas to adjust the dilution ratio • Consumption: 6 l / min of diluting air • Consumption: 20 to 500 cc of standard gas • Packaged weight: 30 kg, 1 case

Download the complete technical features
