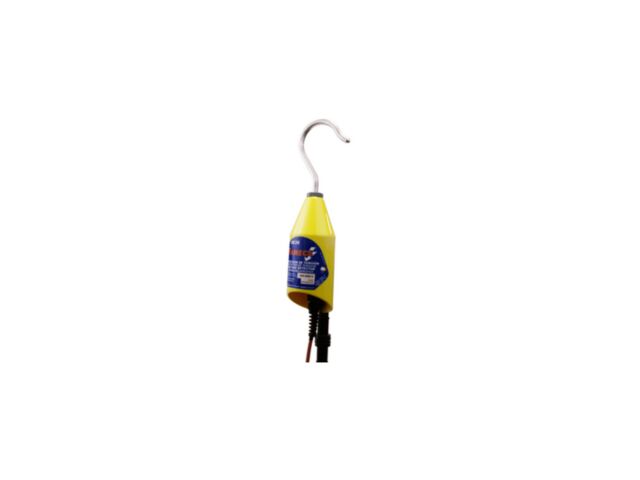

DC voltage detector - DC3600BP

Discover the DC3600BP Bipolar DC Voltage Detector by Penta, a cutting-edge solution designed to meet the specific needs of aerial DC installations.

The DC3600BP is designed in accordance with IEC 61243-2, ensuring optimal performance and safety, particularly in electric traction applications such as trams, subways, and trains.

These devices are specifically adapted to perform the crucial step of Voltage Absence Testing (VAT) on DC installations.

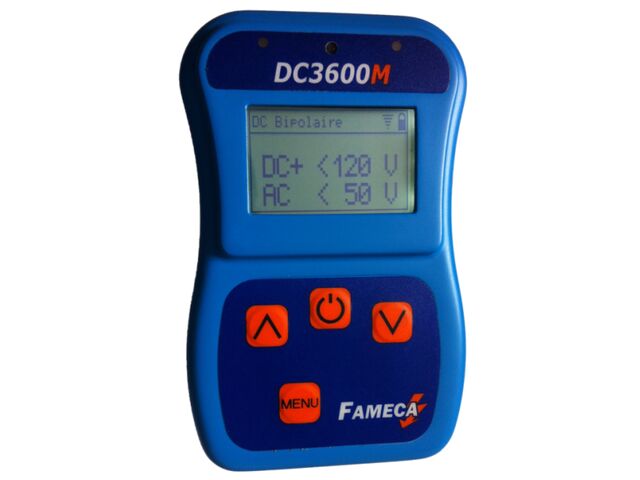

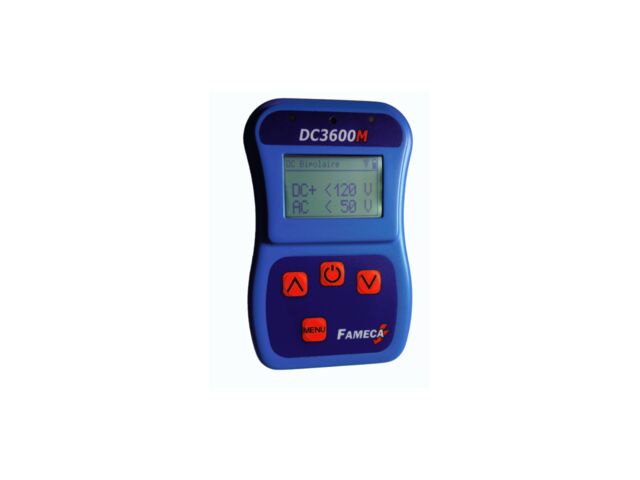

The DC3600BP and its counterpart, the DC3600BPM, go beyond simple voltage detection. They allow you to differentiate between the presence of voltage from residual DC electrical charges and even detect alternating voltage (AC), whether induced or real.

• Dual Signaling: The DC3600BP offers dual signaling for voltage presence, both visual and audible, for enhanced safety.
• Safe Current: The current flowing through the detector cable always remains below the standardized hazardous threshold (3.5 mA), ensuring user safety.
• Surge Resistance: The robust design of the DC3600BP allows it to withstand temporary overvoltages of up to 36 kV, providing additional protection in unforeseen conditions.
• Reliable Power Supply: Powered by a 9-volt alkaline battery compliant with IEC/CEI 6LR61 standards and easily replaceable, the DC3600BP ensures reliable operation.
• Differentiated Signaling: The detector uses specific visual and audible signals for each type of voltage: real voltage (red), residual voltage (orange), alternating voltage (blue), and voltage absence (green).
• Integrated Self-Test: The device features an integrated self-test function to verify proper operation both before and after use, ensuring it is always ready for safe operation.

The DC3600BP is the ideal choice for professionals in the electric traction field. Its versatility, compliance with standards, advanced safety features, and ease of use make it an essential tool for voltage absence verification in specific environments. Trust Penta’s cutting-edge technology to ensure your safety and efficiency.
