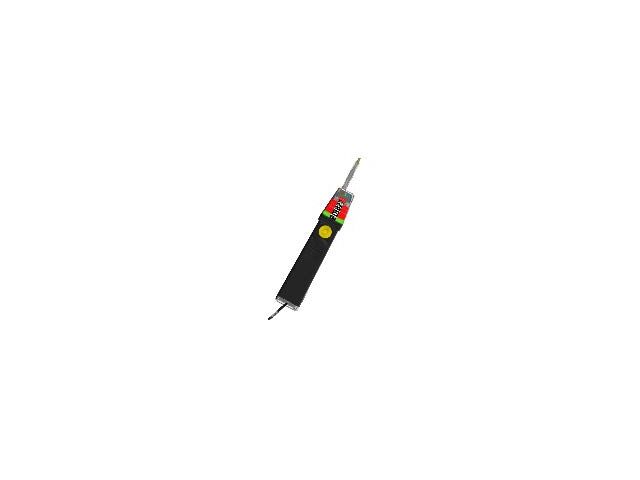

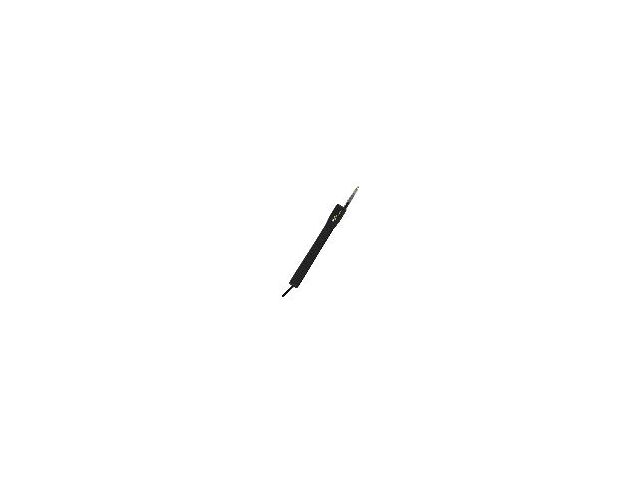

BT Voltage Detector | TAGLITE

The TAGLITE Low Voltage Detector enables the following functions, both for indoor installations and overhead lines:

• Voltage Absence Verification
• Voltage level monitoring from 72 to 7000 V AC / 7500 V DC
• Polarity determination of direct current voltage
• Phase/Neutral discrimination
• Single-phase indication
• Continuity testing
• Functional self-test with all LEDs lighting up and a sound signal emission
• Illuminating the measurement point
• Optimal visual indications : visibility from all working positions:

• 360° front indication
• Visual indication reporting

• Revolutionary IP2X system : Trigger system on the back of the device to free the thumb.
• Secure IP2X sleeve : Dual-speed IP2X system with dual-diameter touch tips:

• First 5 mm retraction via the rear trigger
• Push to retract the remaining length.
• Ergonomic and easy-to-access button : Prominent button for easy handling, even with insulated gloves.
• Ultra-flexible and robust cord : Double-insulated, ultra-flexible and durable cable with no shape memory.
• Quick-access AA battery : Increased autonomy with two AA batteries (optional lithium batteries), accessible from the rear compartment.

• Standard: IEC 61243-3
• Overvoltage category: CAT IV 1000 V
• Protection class: IP 65 according to IEC 60529 (DIN 40050): suitable for use in humid conditions; outdoor use.
• Nominal voltage range: 12 - 1000 V AC / 12 - 1500 V DC
• Current consumption, measurement circuit: AC/DC max. < 3.5 mA
• Polarity display: "+" and "–" symbols
• Voltage level display: 12, 24, 50, 120, 230, 400, 690, 1000 V AC/DC, and 1500 V DC
• Nominal frequency range: 15 to 60 Hz
• Phase indication: Un ≥ 200 V, 50 & 60 Hz
• Test current for continuity testing: max. 2 A; resistance range: 0 - 100 Ω
• Acoustic signal level: 55 dB
• Device activation voltage: ≥ 12 V
• Dedicated light indication: For voltage above Low Voltage Safety Threshold (> 50 V AC or > 120 V DC).
• Integrated self-test
• Power supply: 2 x LR06/AA batteries
• Weight: approx. 285 g
• Double-insulated silicone connection cable: Approx. 1,200 mm length.
• Operating and storage temperature range: -15°C to +45°C; relative air humidity: 20% to 96% (climatic category N).

• 2 LR06/AA batteries

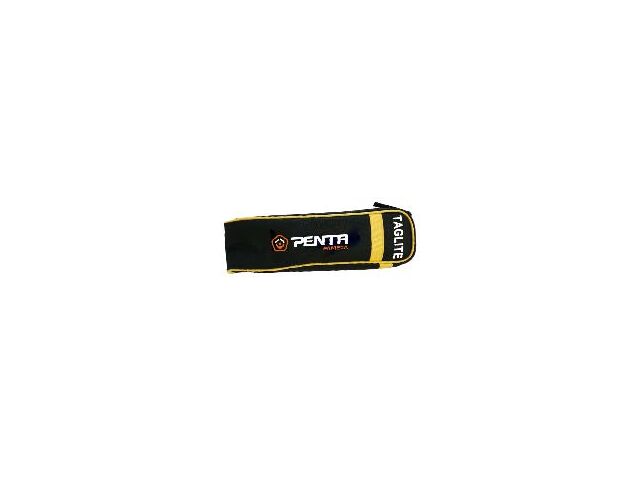

• 1 carrying case
• User manual and instructions / control certificate on the back of the case
