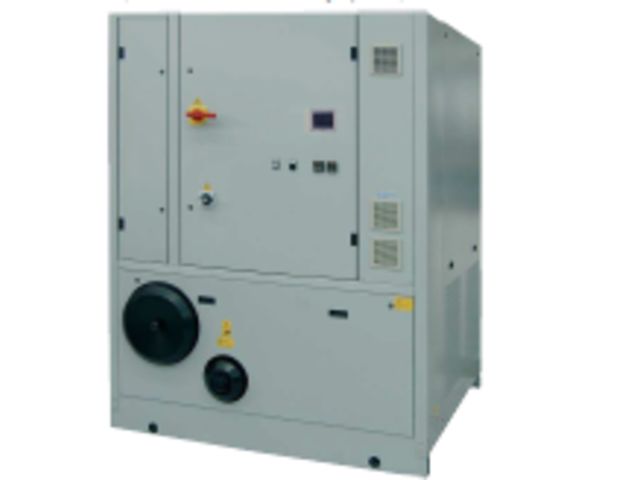

D820P
- Air flow (m3/h) : 2200
- Process temperature NT (°C ) :60-100
- Process temperature MT (°C ) : 60-150
- Process temperature HT (°C ) : 60-190
- Dew point (°C) : -60
- Static pressure (mbar) : 200
- Blow. power proc. ( kW) : 11+11
- Blow. power regen ( kW) : 3
- Power heating proces NT ( kW) : 40.5
- Power heating proces MT ( kW) : 54
- Power heating proces HT ( kW) : 67.5
- Power heating regen. ( kW) : 18.9
- Installed power total NT ( kW) : 85.3
- Installed power total MT ( kW) : 98.8
- Installed power total HT ( kW) : 123
- Abs. med. pow. at 80° C ( kW) : 33
- Voltage (V/H) : 400/50
- Weight (kg) : 1650
D824P
- Air flow (m3/h) : 2600
- Process temperature NT (°C ) :60-100
- Process temperature MT (°C ) : 60-150
- Process temperature HT (°C ) : 60-190
- Dew point (°C) : -60
- Static pressure (mbar) : 200
- Blow. power proc. ( kW) : 12.5+12.5
- Blow. power regen ( kW) : 4
- Power heating proces NT ( kW) : 40.5
- Power heating proces MT ( kW) : 54
- Power heating proces HT ( kW) : 81
- Power heating regen. ( kW) : 24
- Installed power total NT ( kW) : 93.5
- Installed power total MT ( kW) : 107
- Installed power total HT ( kW) : 134
- Abs. med. pow. at 80° C ( kW) : 37
- Voltage (V/H) : 400/50
- Weight (kg) : 1700
D830P
- Air flow (m3/h) : 3000
- Process temperature NT (°C ) :60-100
- Process temperature MT (°C ) : 60-150
- Process temperature HT (°C ) : 60-190
- Dew point (°C) : -60
- Static pressure (mbar) : 230
- Blow. power proc. ( kW) : 111+11+11
- Blow. power regen ( kW) : 4
- Power heating proces NT ( kW) : 40.5
- Power heating proces MT ( kW) : 81
- Power heating proces HT ( kW) : 108
- Power heating regen. ( kW) : 30
- Installed power total NT ( kW) : 107.5
- Installed power total MT ( kW) : 148
- Installed power total HT ( kW) : 175
- Abs. med. pow. at 80° C ( kW) : 47
- Voltage (V/H) : 400/50
- Weight (kg) : 2400
