Cubic graphite heat exchangers CEPIC, series ESC

Heat exchangers

“ Vertically built (less floor space required) or horizontally built on a skid. Each model can hold up to 12 blocks. Exchange area up to 120 m². Easy liquid and gas phase separation when used as condenser, thanks to the use of graphite collectors with several connections. ”

Ask for a quote

Presentation

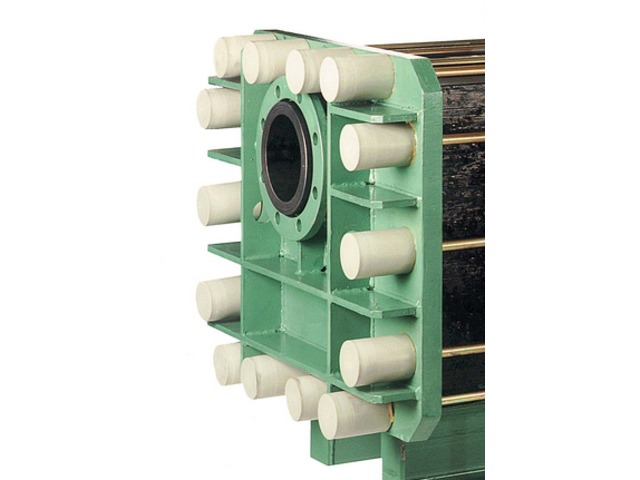

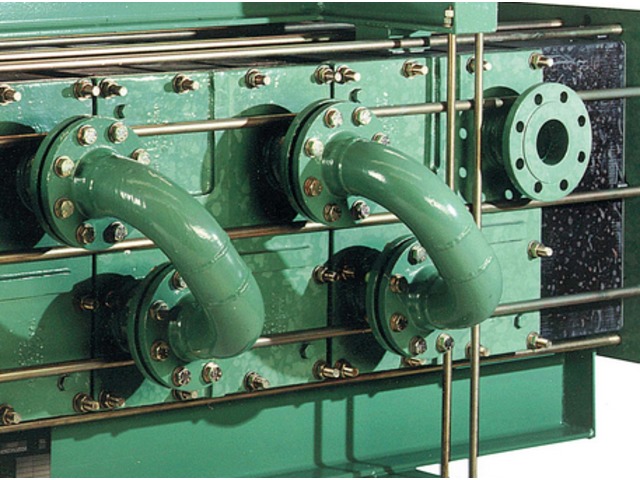

Square section graphite block heat exchanger, made in Carbonite® (CEPIC impervious graphite) to cool, condensate, heat the most corrosive fluids in a safe way (Hydrochloric acid, HCl, Sulfuric acid H2SO4, phosphoric acid H3PO4...)

Its moduldar design allows to provide a total heat transfer area that matches each process need. Up to 12 stacked blocks.

Number of passes on each side (process and service) is selected according the specifications to get the highest thermal efficiency.
