Conveyors | AquaPruf 7400 Ultimate

Modular belt conveyor

Ask for a quote Receive Documentation Contact the supplier

Engineered for Fast & Effective Sanitation in the most demanding environments.

The Ultimate Series has been engineered for Fast & Effective Sanitation in the most demanding environments. These include facilities where food safety is crucial such as: RTE foods, raw protein (meat – poultry – fish), dairy and other environments with high pressure sanitation requirements.​
Benefits of 7400 Ultimate AquaPruf Conveyor:
  • Frame is designed with no horizontal surfaces for optimum cleaning. Conveyors over 10′ long consist of multiple sections which are bolted together (can be welded together on site).
  • Bearings are mounted in cast stainless steel housing for maximum performance in washdown environments
  • Solid UHMW wear strips are easily lifted out of the frame without tools to minimize cleaning time.

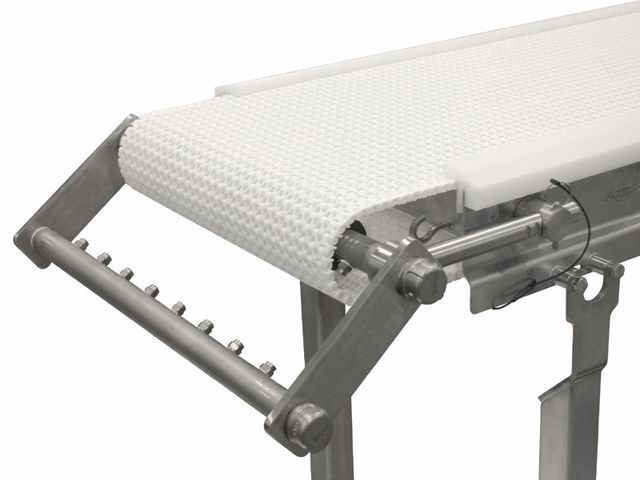

  • the tool-less tip up pulley allows conveyor end to be lifted easily for quick access to inside of conveyor for cleaning.
  • Open Belt Tracking Flanges and solid UHMW idler pucks create access to pulleys.
  • Conveyor is designed to withstand high pressure (100-1,500 psi) spray and chlorinated solutions.
  • The return belt supports are segmented plastic slide blocks and are easily removed without tools for effective cleaning.
  • Drive sprockets are located on 1.5″ square stainless steel shaft without fasteners to provide optimum drive strength and cleanability.

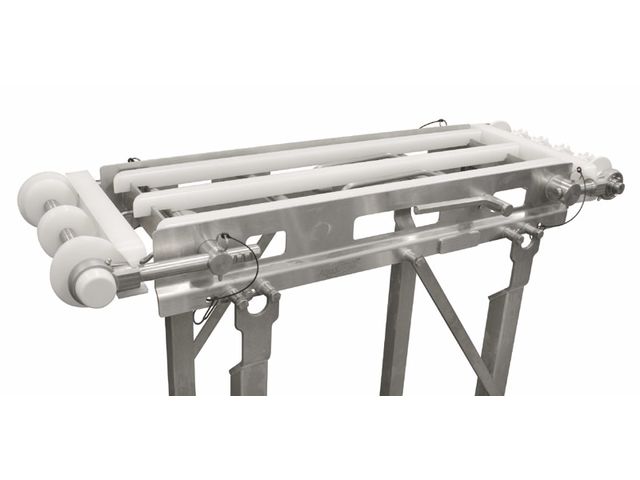

  • Nose bar idler ends (optional) are constructed of machined UHMW bar to provide a 1.5″ diameter transfer.
  • The nose bar drive configuration (optional) are available to allow spraying the inside of the conveyor without lifting the belt.

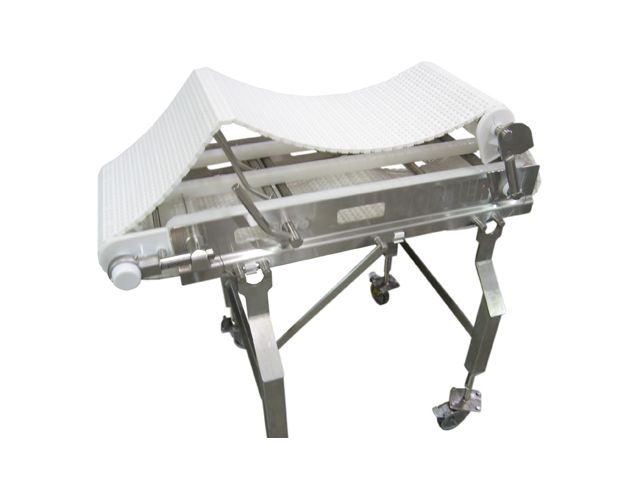

  • Belt lifters (optional) raise the belt from the wear strips by simply pulling an external lever for fast access and effective cleaning
  • TIG welded stand offs keep fasteners out of the food zone.

Load: 20 lbs/square-foot of belt Belt Widths: 6″ to 36″ Lengths: 36″ to 999″ Belt Speed: 233 ft/min maximum UHMW Wear strip bed plate Continuous TIG welded 304 stainless steel frame Bearing material is 400 stainless steel USDA Approved belting and plastic components Meets USDA, NSF & AMI design specifications
